Артикул
Название
Примечание
Количество
1
84142982
WIRE HARNESS

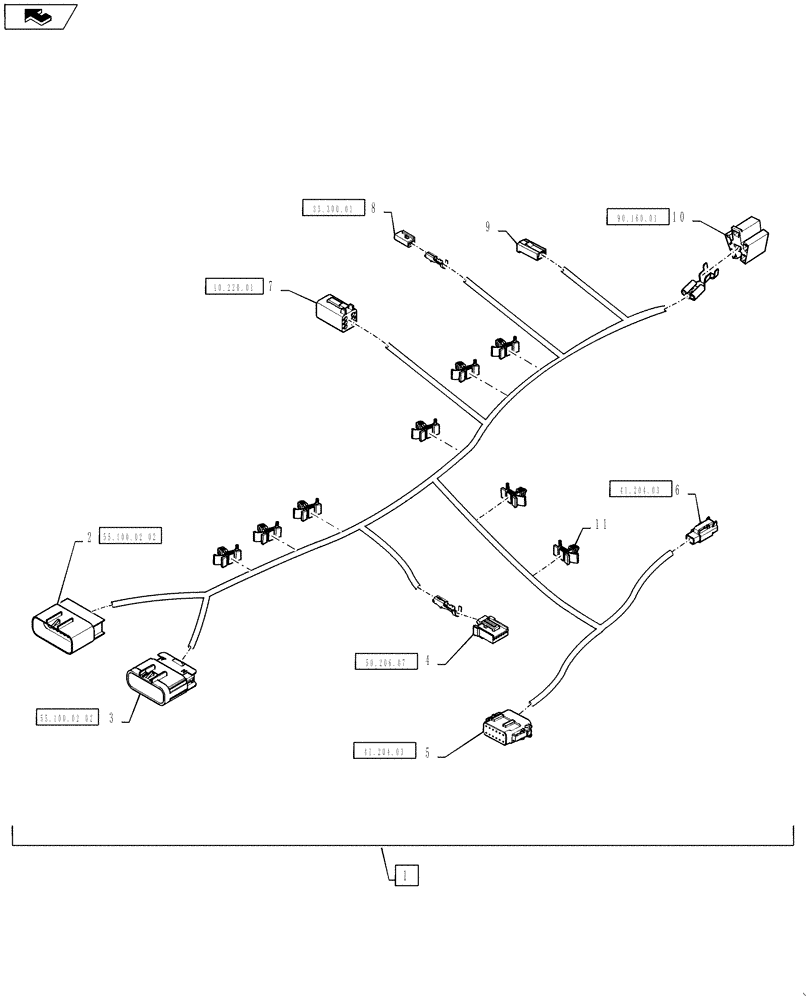

Front Dash Harness, Includes Ref 2 - 11
1шт.
2
388708A1
CONNECTOR, ELEC
CONNECTOR Front Dash 1, C053M
1шт.
2
388686A1
CONNECTOR, ELEC
CONNECTOR Terminal, Front Dash 1, C053M
8шт.
3
87698288
ELEC CONNECTOR
Front Dash 2, C054M
1шт.
3
388686A1
CONNECTOR, ELEC
CONNECTOR Terminal, Front Dash 2, C054M
9шт.
4
198722A1
CONNECTOR, ELEC
CONNECTOR Vent Motor, C088F
1шт.
4
222486A1
CONTACT
Terminal, Vent Motor, C088F
3шт.
5
87705198
WEDGE
Turn Signal Pod, C091M
1шт.
5
225039C1
TERMINAL
Terminal, Turn Signal Pod, C091M
7шт.
6
222846A1
STOP LOCK
Steering Rotation, C092M
1шт.
6
225039C1
TERMINAL
Terminal, Steering Rotation, C092M
2шт.
7
87694112
ELEC CONNECTOR,Female, 6 Pole
TPS, C093M
1шт.
7
87694150
LOCKING TAB,Wedge Lock
TPS, C093M
1шт.
7
87695609
ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2
Terminal, TPS, C093M
5шт.
7
381418A1
SOCKET
Terminal, TPS, C093M
1шт.
8
227429A1
CONNECTOR, ELEC
CONNECTOR Brake Switch, C076F
1шт.
8
87705061
RETAINER
Brake Switch, C076F
1шт.
8
84199545
TERMINAL
Terminal, Brake Switch, C076F
2шт.
9
784374
BODY
Ground, C094F
1шт.
9
87709400
ELEC. TERMINAL PIN
Terminal, Ground, C094F
1шт.
10
87693713
ELEC CONNECTOR,Female, 6 Cavities
CONNECTOR Ingnition Switch, C095F
1шт.
10
739064C1
CONNECTION,ELECTRIC
Terminal, Ingnition Switch, C095F
4шт.
11
392699A1
FASTENER
Harness Tie Down Clip
9шт.
Выбрано товаров: 25
