Запчасти Case IH TITAN 4030 (50.206.03) - CAB AIR CLEANER HOUSING AND FILTER (50) - CAB CLIMATE CONTROL

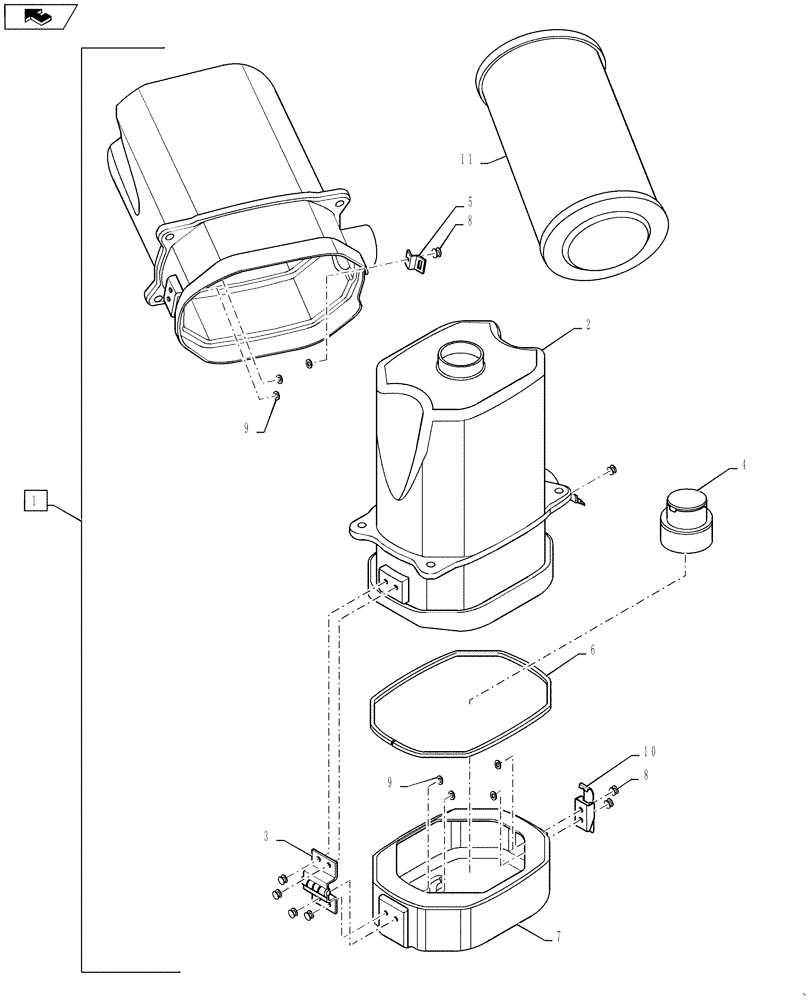

Схема запчастей Case IH TITAN 4030 - (50.206.03) - CAB AIR CLEANER HOUSING AND FILTER (50) - CAB CLIMATE CONTROL
6
8
3
8
7
2
1
4
11
9
10
9
5
home

Артикул

Название

Примечание

Количество

1

87596194

HOUSING

Clean Air Assembly, Includes Ref 2 - 10

1шт.

2

87596192

HOUSING

Upper Filter

1шт.

3

319969A1

HINGE

Filter Housing

1шт.

4

307016A1

COUPLING

Filter

1шт.

5

307021A2

CLIP

Keeper Overcenter

1шт.

6

87598827

RUBBER SEAL,5.08mm W x 680mm L x 4.76mm Thk

Cab Air Cleaner Box

1шт.

7

87596190

HOUSING

Filter Lower

1шт.

8

151-510

RIVET,Pop, 3/16" x .450"

7шт.

9

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

7шт.

10

87596198

LATCH

Draw, With Secondary Catch

1шт.

11

87267363

AIR FILTER,Cab Charcoal Recirculation

Cab Air, Charcoal

1шт.

Выбрано товаров: 11
