Запчасти Case IH TITAN 4030 (50.206.02) - HVAC AUTOMATIC TEMPERATURE CONTROL UNIT (50) - CAB CLIMATE CONTROL

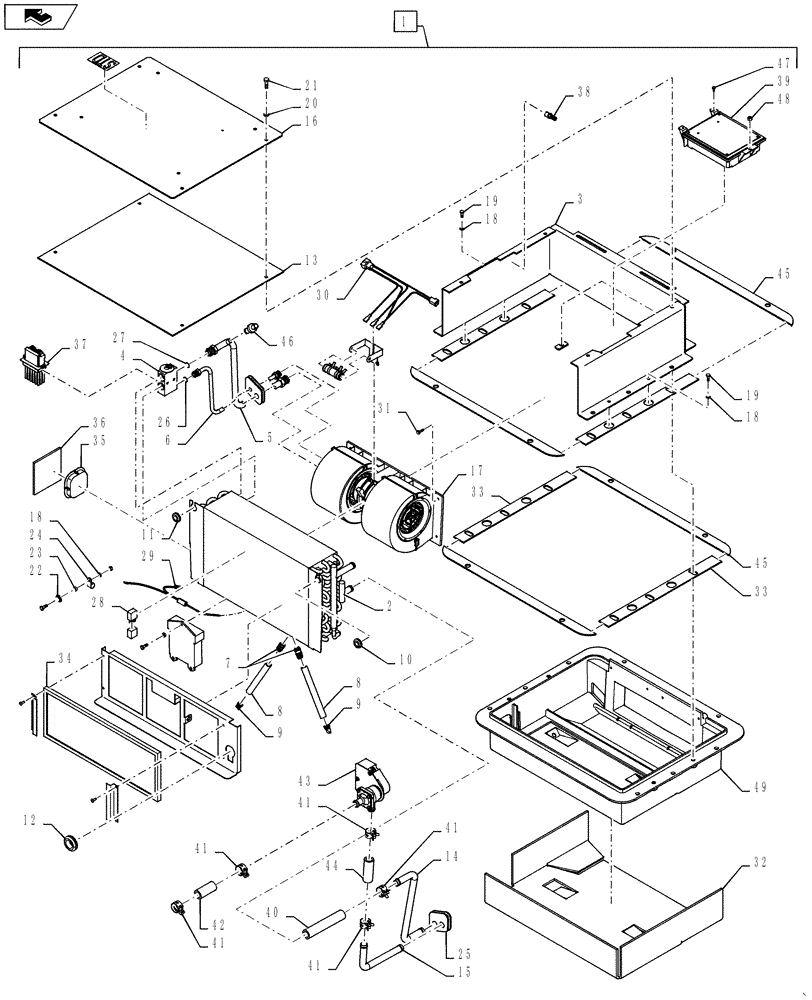

Схема запчастей Case IH TITAN 4030 - (50.206.02) - HVAC AUTOMATIC TEMPERATURE CONTROL UNIT (50) - CAB CLIMATE CONTROL
46
40
home
39
7
8
17
45
24
35
22
30
41
13
47
8
23
26
33
38
18
6
1
16
41
11
34
2
15
19
49
4
10
33
19
9
36
12
41
5
45
43
48
21
41
41
42
14
20
27
44
28
9
3
29
31
25
37
18
18
32

Артикул

Название

Примечание

Количество

1

47597103

AIR CONDITIONER

HVAC, Includes Ref 2 - 49

1шт.

2

86990262

CORE

Combo, Evaporator And Heater

1шт.

3

87306776

CASE ASSY.

Top, HVAC

1шт.

4

386535A1

VALVE

Expansion

1шт.

5

322839A1

TUBE,16mm OD, 211.5, 159.8mm Length

A/C Suction

1шт.

6

322840A1

TUBE,10mm OD, 158.4, 163.9mm L

A/C Liquid

1шт.

7

1250522C3

FITTING

Drain

2шт.

8

1977334C1

HOSE

Condensate Drain

2шт.

9

109239C2

CHECK VALVE

Evaporator Drain

2шт.

10

248-2381

GROMMET,1" ID x 1 3/8" Groove Dia

1шт.

11

322989A1

GROMMET

Bulkhead, A/C

1шт.

12

322990A1

GROMMET

Bulkhead, Heater

1шт.

13

87324951

GASKET,3mm Thk

Top Cover

1шт.

14

322985A1

HEATER TUBE

Heater Outlet

1шт.

15

322987A1

HEATER TUBE,0.625" OD, 138.2, 79.2 mm Length

Heater Inlet

1шт.

16

87306495

COVER

Top

1шт.

17

323610A1

BLOWER

Assembly, Cab

1шт.

17

84222524R

REMAN-BLOWER

Cab

1шт.

17

84222524C

CORE-BLOWER

Return Number

1шт.

18

892-11006

LOCK WASHER,M6

5шт.

19

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

20

892-11008

LOCK WASHER,8mm ID

4шт.

21

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

22

493-81002

LOCK WASHER,Ext-Int Tooth, 1/4"

1шт.

23

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

24

515-21127

CLAMP,1/2", Insul, 1/4" Bolt

1шт.

25

248-1243

GROMMET,1/2" ID x 13/16" Groove Dia, Diag Cut

2шт.

26

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

Air Conditioning

1шт.

27

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

Air Conditioning

1шт.

28

105849A1

RELAY

Micro, 12 Volt

1шт.

29

323016A1

SENSOR

Probe, Temperature

1шт.

30

84381101

WIRE HARNESS

HVAC ATC

1шт.

31

281-14512

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

4шт.

32

324484A1

INSULATOR

Foil, Bottom

1шт.

33

322995A1

GASKET,3mm Thk

Flange

4шт.

34

87409377

FILTER

Recirculated Air

1шт.

35

368313A1

PLASTIC PLUG

Corner

1шт.

36

87306773

FOAM INSULATION

Foil Side

1шт.

37

47788712

SERVICE KIT

Driver Blower Linear

1шт.

38

87454442

SENSOR

Thermister Bullet

1шт.

39

47532798

MODULE

ATC Controller

1шт.

39

47532798R

REMAN-MODULE

ATC Controller

1шт.

39

47532798C

CORE-MODULE

Return Number

1шт.

40

1321290C2

HEATER HOSE,15.50 mm ID x 127.00 mm

Heater Return

1шт.

41

1954736C1

HOSE CLAMP,#24

Heater Hose

6шт.

42

324022A1

HEATER HOSE,15.50 mm ID x 54.00 mm

Heater Supply

1шт.

43

427356A1

CONTROL VALVE

Assembly, Heater

1шт.

44

324023A1

HEATER HOSE,15.50 mm ID x 64.00 mm

Heater Supply

1шт.

45

322994A1

GASKET,3mm Thk

Flange

4шт.

46

84419250

PRESSURE SWITCH

1шт.

47

280-1448

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

2шт.

48

385681

NUT,M4 x 0.7, Cl 8

1шт.

49

322996A1

BOX

Lower Evaporator

1шт.

Выбрано товаров: 53
