Запчасти Case IH TITAN 4030 (36.200.02) - 2-SPEED PNEUMATIC GROUP (36) - PNEUMATIC SYSTEM

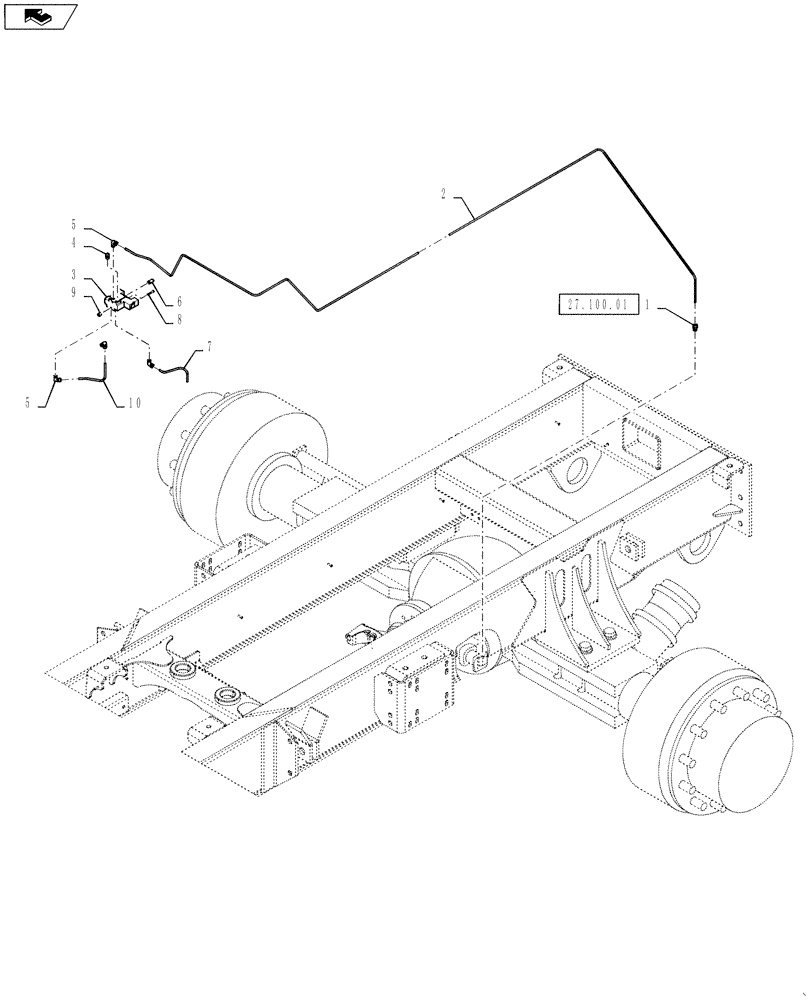

Схема запчастей Case IH TITAN 4030 - (36.200.02) - 2-SPEED PNEUMATIC GROUP (36) - PNEUMATIC SYSTEM
2
4
3
7
home
6
27.100.01
5
9
10
1
5
8

Артикул

Название

Примечание

Количество

1

BN2399401

ADAPTER

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

1шт.

2

BN2393053

TUBE,1/4" X 100' BULK, SAE J844, GREEN

1/4" Bulk Air, Cut To Length Of 17'-10", Green

1шт.

3

87271289

PNEUMATIC VALVE

Includes Harness

1шт.

See Fig 55.560.01 For Service Parts

1шт.

4

217-504

DRAIN PLUG,Hex Hd, 1/4"-18, NPTF

1шт.

5

BN2399404

90 ELBOW

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

4шт.

6

BN23041

MUFFLER

Air Valve, 1/8 NPT

2шт.

7

BN2292089

AIR INTAKE TUBE

Synflex 1/4" Black, Bulk, Cut To Length Of 8.5"

1шт.

8

BN310264

SCREW,#10 - 24 x 1 1/4", SST

10-24 x 1-1/4", BSH, SST

2шт.

9

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

2шт.

10

BN2393052

TUBE,1/4" X 100' BULK, SAE J844, YELLOW

1/4" Bulk Air, Cut to Length Of 7.25"

1шт.

Выбрано товаров: 11
