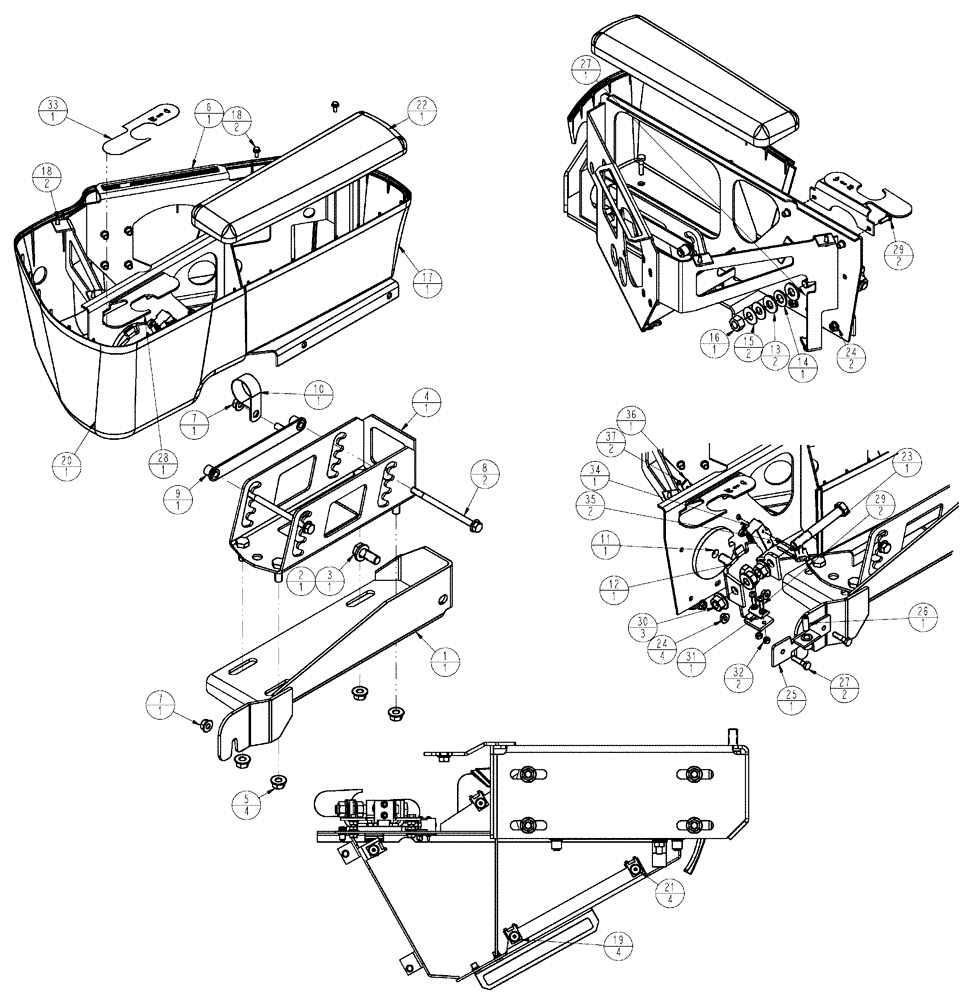

Запчасти Case IH TITAN 4020 (01-054) - R.H. CONSOLE, SUBASSEMBLY (10) - CAB

1

BN317670

MOUNTING PLATE

Mount, SPX Control Console

1шт.

2

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

1шт.

3

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

1шт.

4

BN321613

SLIDE

Weldment, Lower

1шт.

5

9804278

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

6

NS

NOT SERVICED

Frame Assembly, RH Con 778D

1шт.

7

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

8

857-8120

BOLT,Hex, M8 x 120mm, Cl 10.9

M8 X 120 FLN CL 10.9

2шт.

9

BN323138

Assembly

1шт.

10

515-23365

CLAMP,1 7/16", Insul, 3/8" Bolt

1шт.

11

251090A1

THRUST WASHER

wear

1шт.

12

86986778

SUPPORT

Prop Lever, FLX

1шт.

13

86625244

WASHER,0.47" ID x 1" OD x 0.1" Thk

7/16 Hardened

2шт.

14

159688R91

THRUST BEARING

1шт.

15

1994980C1

BELLEVILLE WASHER

Belleville, M10

2шт.

16

BN305066

NUT,7/16" - 14, Gr 8

7/16-14, FLN, G8

1шт.

17

130412A1

COVER

skirt, console, rear

1шт.

18

841-4410

SCREW,HWH, M4 x 10mm, Cl 4.8

4шт.

19

87016567

SPRING NUT,Tinn, U, #10

4шт.

20

NS

NOT SERVICED

Console Front, FLX

1шт.

21

357481A1

SCREW,Truss, #10 - 16 x 3/4"

#10-16 X 3/4 PH Truss

4шт.

22

128970A3

ARMREST

assembly, console

1шт.

23

86508581

BOLT,Hex, M12 x 90mm, Cl 8.8

1шт.

24

86511444

FLANGE NUT,Hex, M6 x 1

6шт.

25

86986779

DETENT

Stop Assembly

1шт.

26

87267355

SPRING

Plunger

1шт.

27

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

3шт.

28

86986772

PLATE

Prop Handle Blank

1шт.

29

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

4шт.

30

87344225

FLANGE NUT,M12 - 1.75, 8, DOR, Flange

2шт.

31

87266876

BLOCK

Detent

1шт.

32

87016571

NUT,M5, Cl 5

2шт.

33

87267344

DECAL

De-Cel/Cruise

1шт.

34

BN323496

TOGGLE SWITCH

Neutral Safety Switch

1шт.

35

86511818

SCREW,Pan HD, M3 x 0.5 x 30mm, Cl 4.8

2шт.

36

87492830

PLATE

Prop Switch Mount

1шт.

37

BN307971

SEALANT

thread

1шт.

38

PL

PROCURE LOCALLY

Petroleum Jelly

1шт.

39

BN1243001

LOCTITE

243-31 Removable

1шт.
