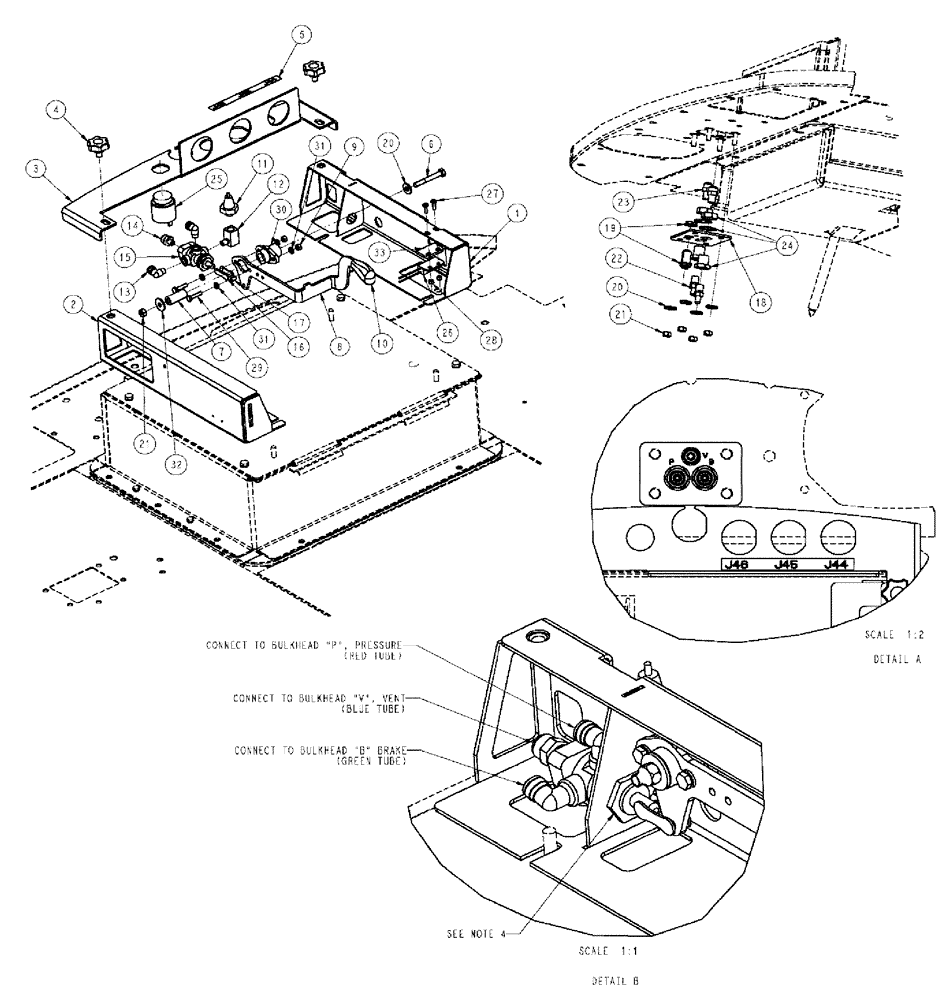

Запчасти Case IH TITAN 4020 (01-024) - PARKING BRAKE CONTROL GROUP (10) - CAB

1

87269339

FRAME

Seat Cowl, LH, FLX

1шт.

2

342840A1

FRAME

seat cowling, RH

1шт.

3

342916A4

SUPPORT

WIRE HARNESS

1шт.

4

394133A1

KNOB

BATTERY COVER

2шт.

5

BN325979

DECAL

INTERCONNECT I.D.

1шт.

6

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

1шт.

7

87269336

BUSHING

PARK BRAKE LEVER

1шт.

8

87269335

CONTROL LEVER

PARK BRAKE

1шт.

9

353308

NUT,M6 x 1.0, Cl 8

2шт.

10

134071A1

KNOB

Throttle Control

1шт.

11

BN2394905

SWITCH

8640 CH NOR Closed

1шт.

12

217-1028

ELBOW,1/8" - 27 Male x 1/4" - 18 Female

1шт.

13

BN2399405

90 ELBOW

1/8" MPT x 1/4" OD Tube, Push Lock Fitting

2шт.

14

BN2399402

ADAPTER

1/8" MPT x 1/4" OD Tube, Push Lock Fitting

1шт.

15

BN2392202

BRAKE VALVE

WM762A2A

1шт.

16

242-138

LINK,7.92mm Pitch

#2040 DOUBLE PIT

1шт.

17

86986766

SPACER

NYLON #8 X 6.35 OD

1шт.

18

86986767

PLATE

BULKHEAD MOUNT

1шт.

19

BN324869

BULKHEAD

UNION 1/4 TUBE

1шт.

20

87015284

WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk

5шт.

21

86528579

NUT,M8 x 1.25

5шт.

22

261768

HYD CONNECTOR,7/16" - 20 JIC x 1/4" - 18 NPT

2шт.

23

BN2399401

ADAPTER

Male, 1/4" Tube

2шт.

24

BN2290340

COUPLING

207ACBHS-4

2шт.

25

BN319663

BUZZER

Chime Tone

1шт.

26

BN315498

SWITCH

PROXIMITY

1шт.

27

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

2шт.

28

87016571

NUT,M5, Cl 5

2шт.

29

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

30

A162299

BEARING,15.95mm ID

control lever

1шт.

31

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

32

86528503

WASHER

M8, Fw, ZND-25 DIA./8.4Bore/2

1шт.

33

87269472

SPACER

SWITCH

1шт.
