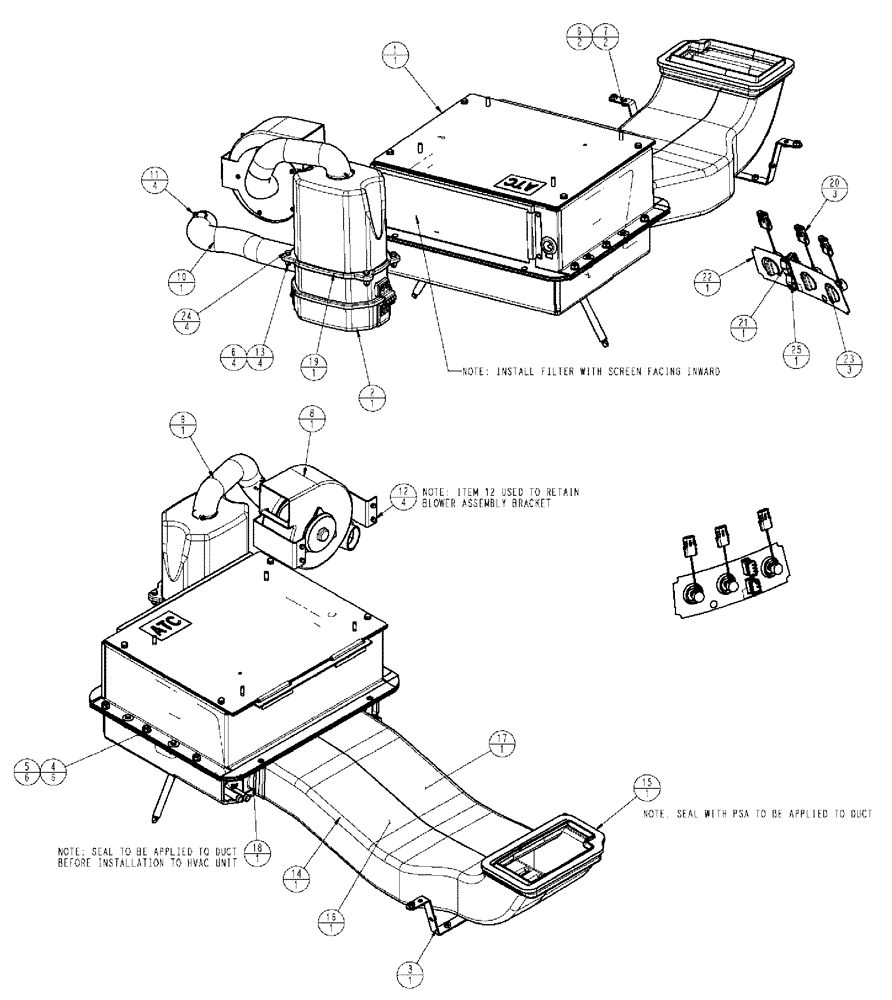

1
87365878
AIR CONDITIONER
With Auto Temp Control
1шт.
See Fig. 01-013
1шт.
2
87596194
HOUSING
Air Cleaner Assembly
1шт.
See Fig. 01-017
1шт.
2a
319970A3
HOUSING
FILTER
1шт.
Indicates Old Part Number Or Can Order Newer Part Number Listed Above
1шт.
3
384950A2
BRACKET
duct
1шт.
4
140017
WASHER,M10 x 20mm OD x 2mm Thk
6шт.
5
86500689
NUT,M10 x 1.5, Cl 10
6шт.
6
86625263
WASHER,9mm ID x 20mm OD x 1.6mm Thk
6шт.
7
43362
NUT,M8 x 1.25, Cl 10
2шт.
8
307432A3
BLOWER
assembly
1шт.
8a
307104A3
SUPPORT
blower
1шт.
Parts of Blower Assy, with Auto Temp Control, P/N 307432A3
1шт.
8b
313282A1
SEAL
blower support
1шт.
Parts of Blower Assy, with Auto Temp Control, P/N 307432A3
1шт.
8c
87107380
BLOWER
Cab Pressurizer
1шт.
Parts of Blower Assy, with Auto Temp Control, P/N 307432A3
1шт.
8d
86639262
SCREW,M5 x 8mm
5шт.
Parts of Blower Assy, with Auto Temp Control, P/N 307432A3
1шт.
9
307024A4
INTAKE AIR HOSE,57.00 mm ID x 390.00 mm
1шт.
10
307025A4
INTAKE AIR HOSE,54.00 mm ID x 390.00 mm
Filter
1шт.
11
86050202
HOSE CLAMP,1.59” - 2.5”, Worm Gear
4шт.
12
86508616
BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd
4шт.
13
86528579
NUT,M8 x 1.25
4шт.
14
327851A1
DUCT
HVAC
1шт.
15
278967A3
GASKET
seal, duct to cab floor
1шт.
16
328051A2
FOAM INSULATION
HVAC duct
1шт.
17
328052A2
FOAM INSULATION
HVAC duct
1шт.
18
359670A2
INSULATION,60mm W x 860mm L x 10mm Thk
foam, duct to cab floor
1шт.
19
359586A1
SEAL
filter (floor panel)
1шт.
20
418107A1
POTENTIOMETER,10,000 Ohm
Temperature Control
3шт.
21
87454558
SWITCH
Auto/Manual Climate Control
1шт.
22
87450974
DECAL
Deluxe Overhead Panel HVAC
1шт.
23
1331046C2
KNOB
Switch Panel
3шт.
24
43128
BOLT,M8 x 1.25 x 30mm, Cl 8.8
4шт.
25
87305994
SWITCH
Defog
1шт.
