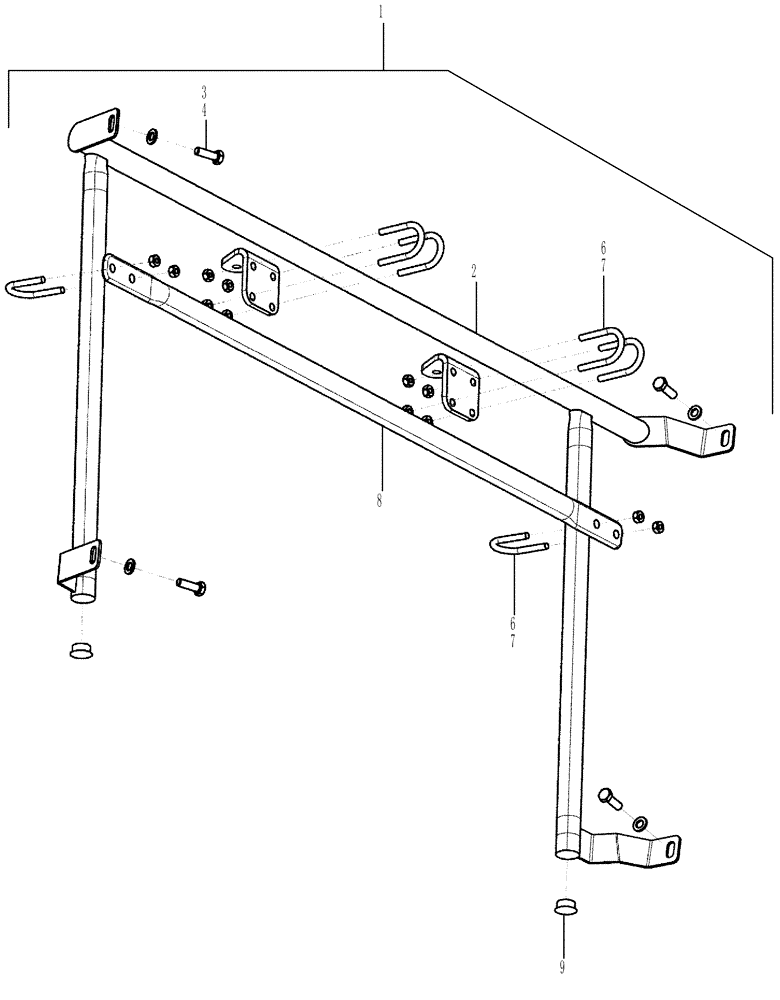

Запчасти Case IH TITAN 4020 (01-009[02]) - MONITOR WINDOW MOUNT OPTION (10) - CAB

1

386857A1

MOUNTING PARTS

Monitor, Window Option

1шт.

2

409391A2

MOUNTING PARTS

Monitor

1шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

4

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

5

87530660

BRACKET

Monitor Mount

2шт.

6

87526197

U-BOLT,1/4" - 20 x 1", Round, 1-1/8" W, 2" L

6шт.

7

425-104

NUT,1/4"-20, Cl 5

12шт.

8

87530555

TUBE,19.3 mm ID x 919.6 mm L

Mount

1шт.

9

353-408

PLUG,Dome, .750" hole, Nylon

2шт.
