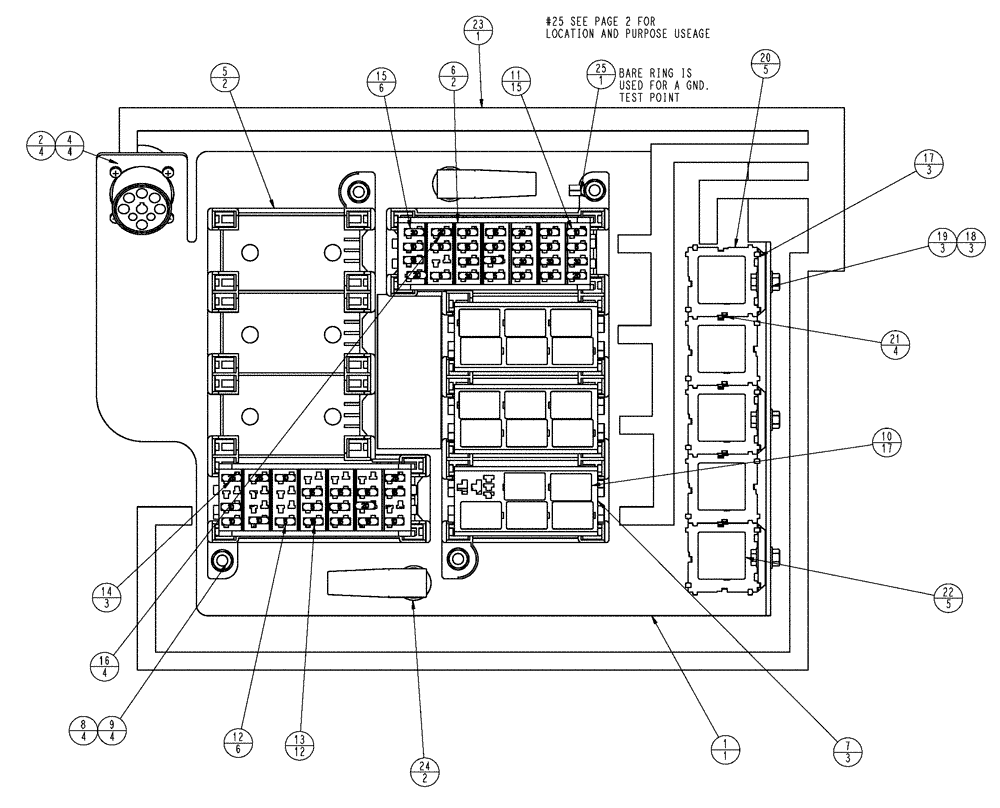

Запчасти Case IH TITAN 4020 (08-005) - MODULE, CAB MAIN (06) - ELECTRICAL

0

87335489

MODULE

Cab

1шт.

Eary Production W/ 23 Pin Connector at BH11

1шт.

0

87719915

MODULE

Cab

1шт.

Late Production W/ 16 Pin Connector at BH11

1шт.

1

87335614

BASE PLATE

Electrical, Surveyor Cab

1шт.

2

86599775

SCREW,M3 x 0.5 x 14.4mm OAL, Cl 4.8

4шт.

3

86639310

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

4шт.

4

824-1403

NUT,M3, Cl 5

4шт.

5

191135A1

BASE

Packard P/N 12110041

2шт.

6

144421A1

CONNECTING BLOCK

Module, Packard 28-Way Minifuse

2шт.

7

144417A1

CONNECTING BLOCK

Module, Packard 6-Way Micro Relay

3шт.

8

86624181

WASHER,M6

4шт.

9

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

4шт.

10

87414866

RELAY,12V, 20A

Bosch M30 332 201 107

17шт.

11

121412A1

FUSE,10A, Mini, Red

15шт.

12

121410A1

FUSE,5A, Mini, Tan

6шт.

13

121413A1

FUSE,15A, Mini, Blue

12шт.

14

121415A1

FUSE,25A, Mini, Clear

3шт.

15

121416A1

FUSE,30A, Mini, Green

6шт.

16

121414A1

FUSE,20A, Mini, Yellow

4шт.

17

367147A1

BRACKET

mounting (Dill #59205)

3шт.

18

86639263

BOLT,Hex, M5, Cl 8

3шт.

19

43416

KIT

HEX SERRATED FLANGE M5 ZND

3шт.

20

367145A1

ELEC CONNECTOR,Female, 4 Pin

grey terminal (Dill #59184)

5шт.

21

367146A1

WEDGE

lock, red (Dill #59011)

4шт.

22

368459A1

RELAY,12V, 70A

70 amp power, Hella #66132

5шт.

23

NSS

NOT SOLD SEPARAT

HARNESS, 4WD CAB MAIN ELECTRICAL

1шт.

24

342478A1

LATCH

Swell

2шт.

25

RING_TERM

TERMINALS TYPE A RING

1шт.
