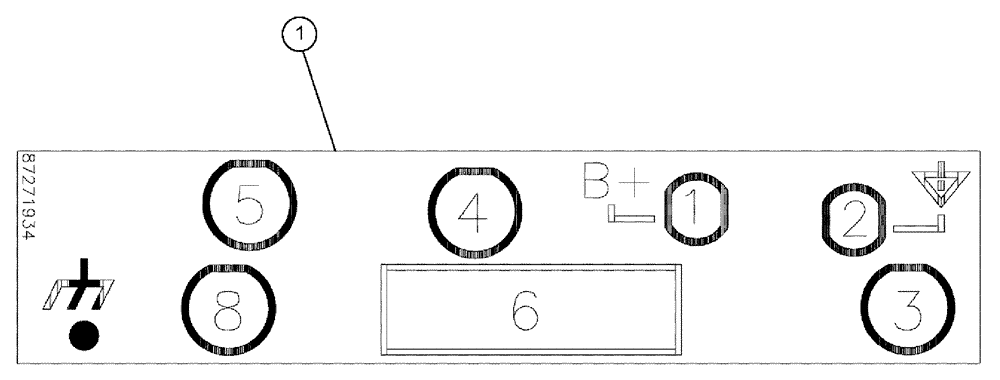

Запчасти Case IH TITAN 4020 (08-001) - FRAME ELECTRICAL GROUP (06) - ELECTRICAL

1

87271934

DECAL

Bulkhead Callout

1шт.

2

178149A1

SOLENOID SWITCH

Kit, With Barrier

1шт.

3

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

Not Shown

1шт.

4

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

Not Shown

1шт.

5

NS

NOT SERVICED

Speed Sensor Group

1шт.

See Fig. 08-006

1шт.

6

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

7

353308

NUT,M6 x 1.0, Cl 8

2шт.

8

87271870

WIRE HARNESS

Frame, 4 Wheel

1шт.

See Fig. 08-010

1шт.

9

87271932

WIRE HARNESS

Tail Light Extension

1шт.

10

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

11

87271429

WIRE HARNESS

Engine Tier 3 535

1шт.

See Fig. 08-012

1шт.
