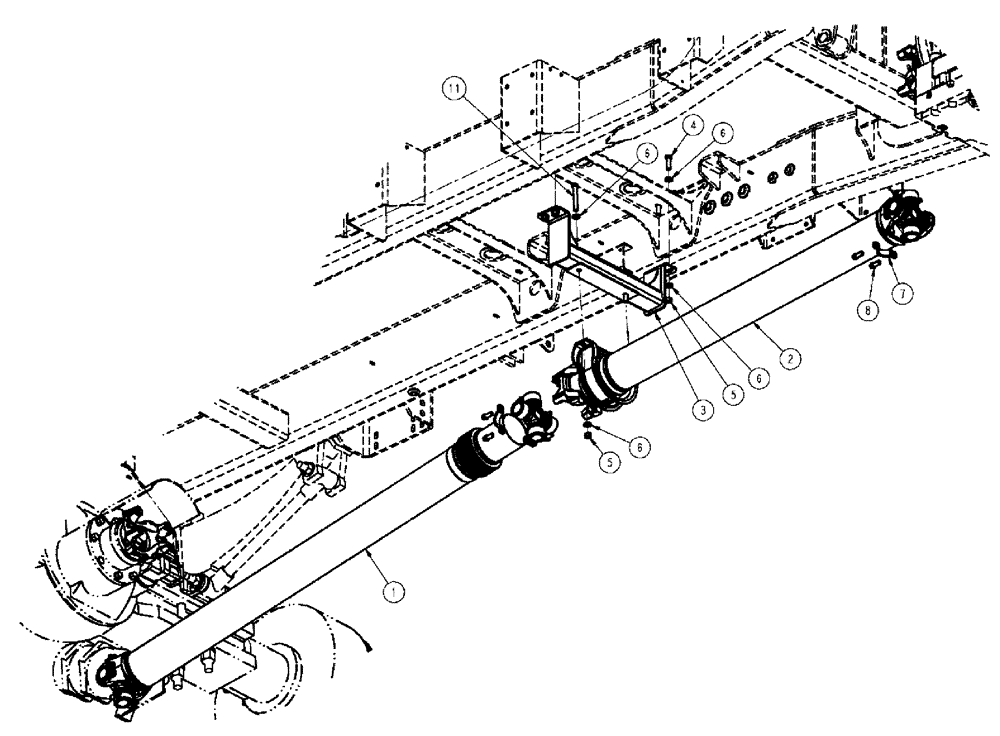

Запчасти Case IH TITAN 4020 (03-014) - DRIVELINE GROUP, TITAN 4020 (03) - TRANSMISSION

1

343801A1

DRIVE SHAFT

line, slip

1шт.

2

87267051

SHAFT

DRIVELINE, STATIONARY

1шт.

3

344363A1

SUPPORT

hanger, driveline

1шт.

4

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

4шт.

5

100038

NUT,M12 x 1.75, Cl 8

6шт.

6

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

12шт.

7

BN326109

STRAP

YOKE, SPL170

6шт.

8

BN326110

BOLT

YOKE STRAP, SPL170

12шт.

11

86508581

BOLT,Hex, M12 x 90mm, Cl 8.8

2шт.

11a

NSS

NOT SOLD SEPARAT

DRIVELINE SERVICE PARTS, SEE FIG. 03-017

1шт.
