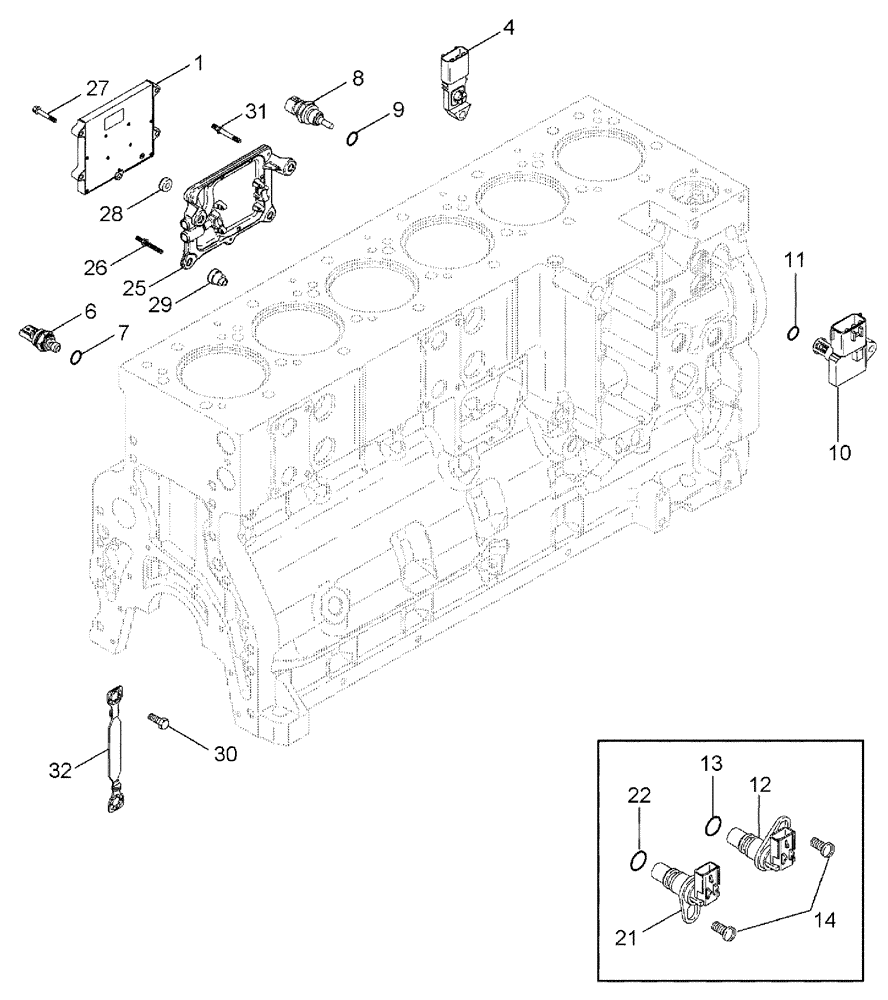

Запчасти Case IH TITAN 4020 (02-051) - ENGINE - CONTROL MODULE (01) - ENGINE

1

87342193

ECU

1шт.

1

87342193R

REMAN ELECT CONTROL

Remanufactured Electronic Control Unit

1шт.

1

87342193C

CORE-ELECTRONIC CONT

Return Number, ELECTRONIC CONTROL UNIT -

1шт.

4

87341871

SENSOR

Pressure

1шт.

Includes Ref. 5

1шт.

5

J330202

O-RING,11.3MM ID x 2.2 Thk

1шт.

6

87568842

SENSOR

Oil Pressure

1шт.

Includes Ref. 7

1шт.

7

87385019

O-RING,11.3mm ID x 2.2mm Width

11.3 id x 2.2 mm

1шт.

8

87470173

SENSOR

Temperature

1шт.

Includes Ref. 9

1шт.

9

87536785

O-RING,0.087" Thk x 0.445" ID

11.3 id x 2.2 mm

1шт.

10

87584643

SENSOR

Pressure/Temperature

1шт.

Includes Ref. 11

1шт.

11

87342065

SEAL,2mm Thk x 9mm ID, 75 Duro

11.3 ID x 2.2 mm

1шт.

12

87352952

SENSOR

Position

1шт.

Includes Ref. 13

1шт.

13

87352938

O-RING,2.62mm Thk x 15.54mm ID, 75 Duro

1шт.

21

87341787

SENSOR

Position, Years: -01-NOV-09

1шт.

Includes Ref. 22

1шт.

21

84274595

SENSOR

Position, Start Year: 01-NOV-09

1шт.

22

87352938

O-RING,2.62mm Thk x 15.54mm ID, 75 Duro

1шт.

25

87341857

COOLER

Electronic Control, Before Engine Serial Number 73030180

1шт.

25

84328463

FUEL COOLER

Electronic Control, After Engine Serial Number 73030179

1шт.

26

J944816

SCREW,Hex Flg, M8 x 1.25 x 50mm, Cl 8.8

3шт.

27

87015866

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

4шт.

28

87341822

ISOLATOR

4шт.

29

87341823

ISOLATOR

4шт.

30

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

2шт.

31

87341816

SCREW,Hex Flg, M10 x 1.5 x 15mm

1шт.

32

87341820

GROUND STRAP

1шт.

33

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

1шт.

34

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

1шт.

35

87341845

SCREW,Torx Skt Hd, M4 x 16mm

1шт.

36

J900589

NUT

1шт.

37

87015915

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8, Full Thd

1шт.
