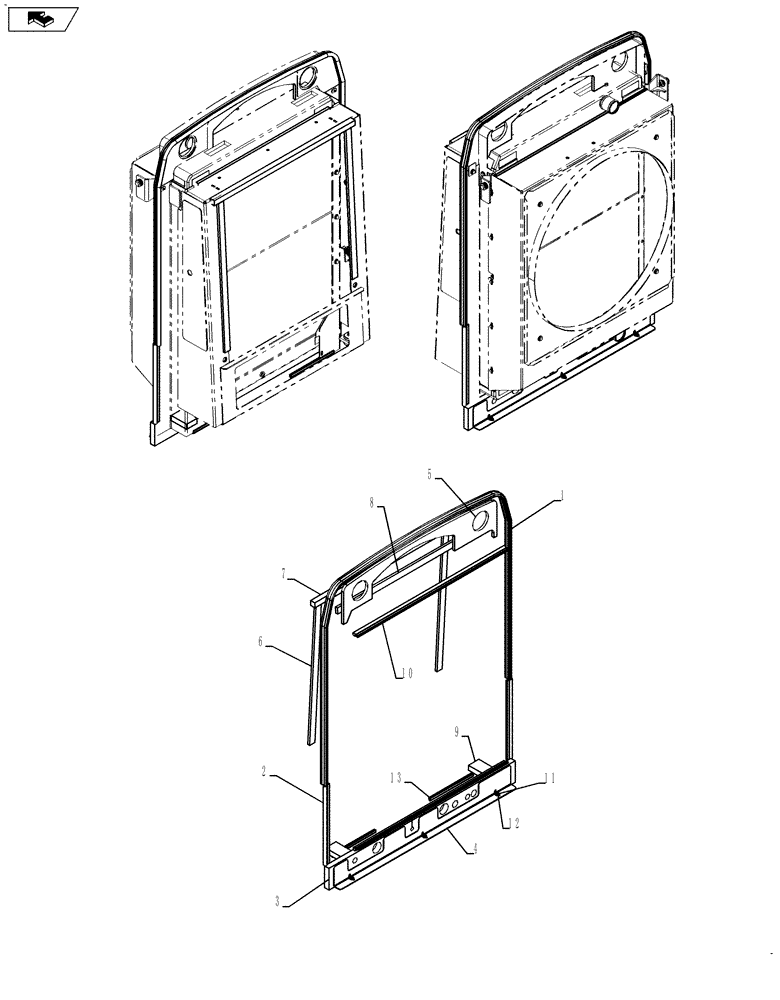

Запчасти Case IH TITAN 4020 (02-020[02]) - RADIATOR BAFFLE GROUP, TITAN 4520, SERIAL NUMBER YAT028756 AND AFTER (01) - ENGINE

1

344153A1

SEAL

Hood Bulb

1шт.

2

84226306

SEAL

Lower Radiator Bulb

2шт.

3

84183906

SEAL

Lower Radiator Foam

1шт.

4

344163A1

BRACKET, SUPPORTING

Radiator Foam Seal

1шт.

5

84359571

RUBBER SEAL

Foam, Hood

1шт.

6

336686A1

SEAL

CAC Side

2шт.

7

336684A1

SEAL

Radiator Top Front

1шт.

8

84226304

SEAL

CAC/Radiator Foam

1шт.

9

87266874

SEAL

Corner Radiator Foam

2шт.

10

84226302

SEAL

Top Radiator

2шт.

11

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x 18 x 1.6 mm, CST, DOR

3шт.

12

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

3шт.

13

BN303902

SOFT TRIM

Regular

2шт.
