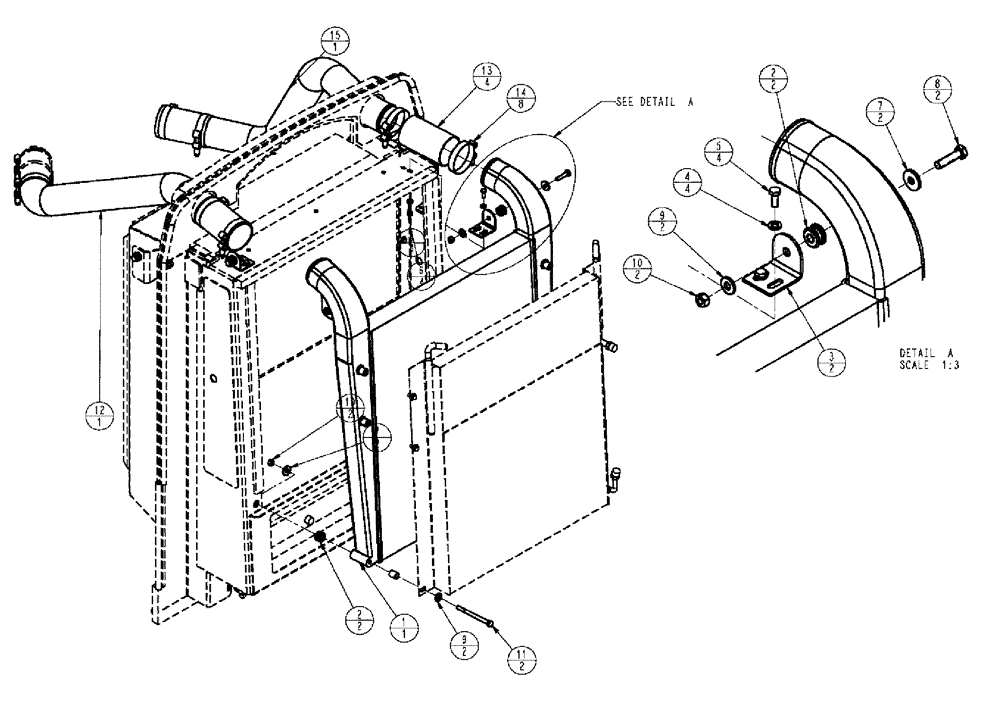

Запчасти Case IH TITAN 4020 (02-016) - CHARGE AIR GROUP (01) - ENGINE

1

259332A4

AFTERCOOLER

CHARGE AIR

1шт.

2

60-6650T1

RUBBER BUSHING

Mount

4шт.

3

BN324064

ANGLE

mount, top CAC

2шт.

4

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

8шт.

5

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

6

9991588

NUT,M8 x 1.25, Cl 8

4шт.

7

87529239

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

0.406 x 1.125 x 0.134 HTS DOR HDN

4шт.

8

86980403

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

9

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

10

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

11

86980413

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

2шт.

12

343402A1

TUBE,88.9 mm OD, 757, 254 mm Length

CAC INLET

1шт.

13

87271031

INTAKE AIR HOSE,88.90 mm ID x 152.40

4шт.

14

87270795

CLAMP

T-Bolt 3.56" Spring

8шт.

15

87271783

TUBE,3.50" OD

CAC OUTLET

1шт.
