(02-010) - HOSE/FITTING GROUP, FUEL

Запчасти Case IH TITAN 4020 (02-010) - HOSE/FITTING GROUP, FUEL (01) - ENGINE

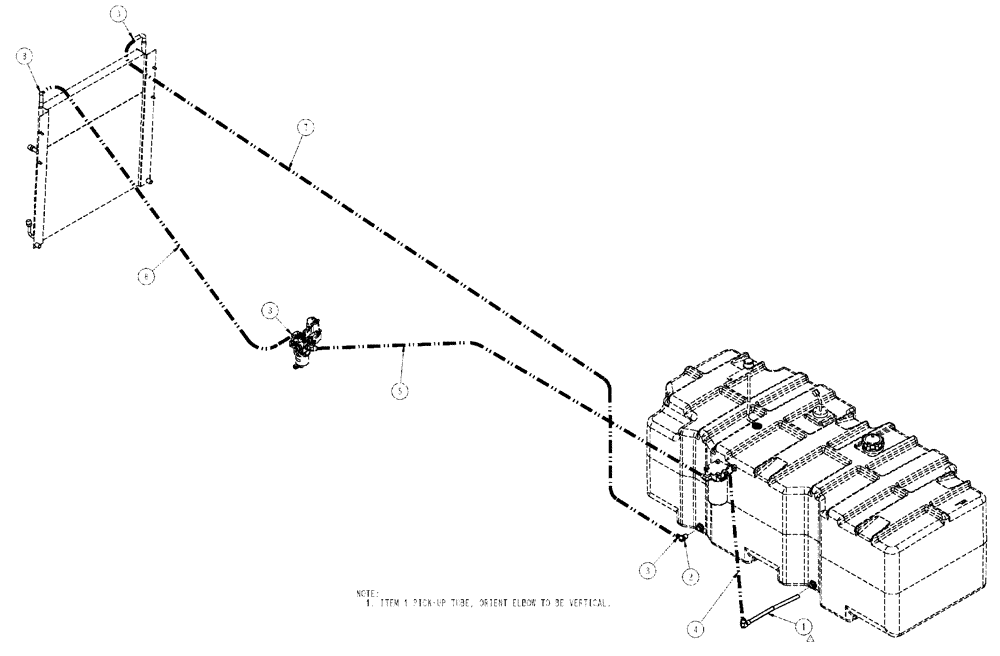

Схема запчастей Case IH TITAN 4020 - (02-010) - HOSE/FITTING GROUP, FUEL (01) - ENGINE
6
8
1
4
2
3
3
5
2
8
6
3
4
7
1
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87269157

FUEL TUBE,332 mm L

Fuel Pick-Up

1шт.

2

217-144

45 ELBOW,45 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

1шт.

3

9706921

HOSE CLAMP,12.7mm - 35mm

4шт.

4

87265542

HOSE

10 x 30"

1шт.

5

87590766

HOSE

10 x 114"

1шт.

6

87266791

FUEL HOSE

FUEL, 5/8" X 135"

1шт.

7

87267453

FUEL HOSE

FUEL, 5/8" X 218"

1шт.
