(33.300.03[02]) - FRONT BRAKE CALIPER BREAKDOWN, BSN YCT033001

Запчасти Case IH TITAN 3530 (33.300.03[02]) - FRONT BRAKE CALIPER BREAKDOWN, BSN YCT033001 (33) - BRAKES & CONTROLS

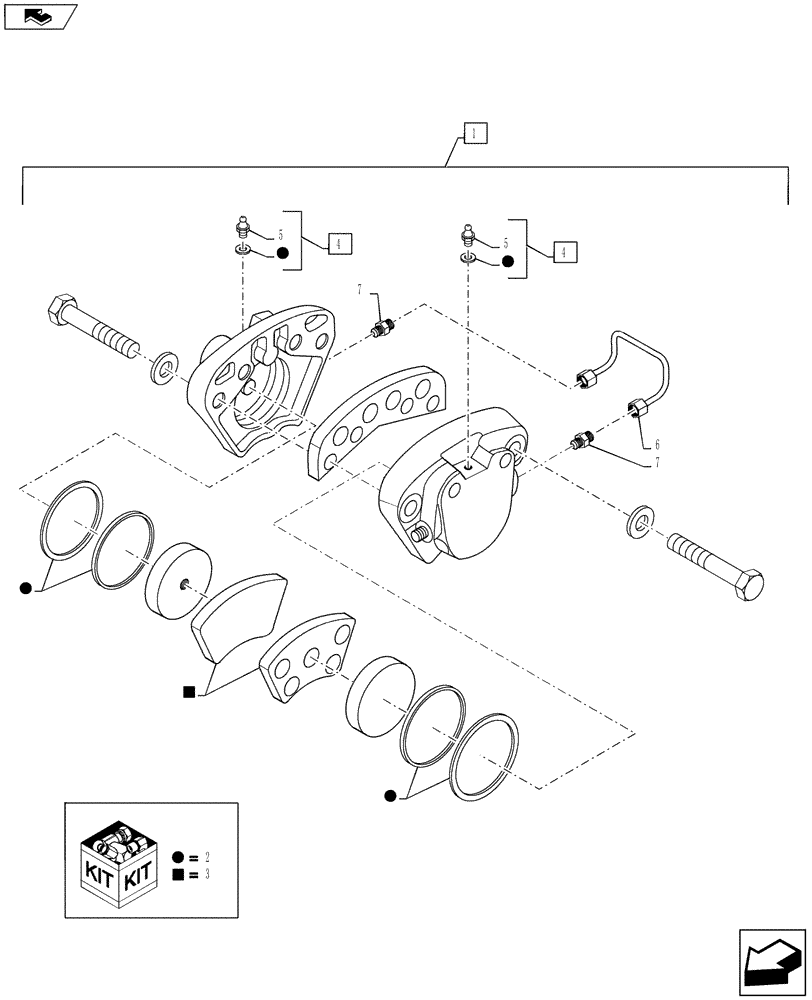

Схема запчастей Case IH TITAN 3530 - (33.300.03[02]) - FRONT BRAKE CALIPER BREAKDOWN, BSN YCT033001 (33) - BRAKES & CONTROLS
7
home
3
5
2
6
2
3
7
3
5
4
4
2
1
2
2
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

343996A1

CALIPER

Brake, Includes Ref 2 - 7

1шт.

1

343996A1C

CORE-BRAKE ASSY.

Return Number, For N.A. Only

1шт.

1

343996A1R

REMAN-BRAKE ASSY.

Reman, N.A. Only

1шт.

2

BN314703

KIT

Brake Repair

1шт.

3

BN314704

KIT

Brake Lining

1шт.

4

87271758

BLEEDER

Assembly, Includes Ref 5

2шт.

5

S107710

SCREW

Bleeder, Plug

2шт.

6

87271759

TUBE

Assembly

1шт.

7

87271760

HYD CONNECTOR

2шт.
