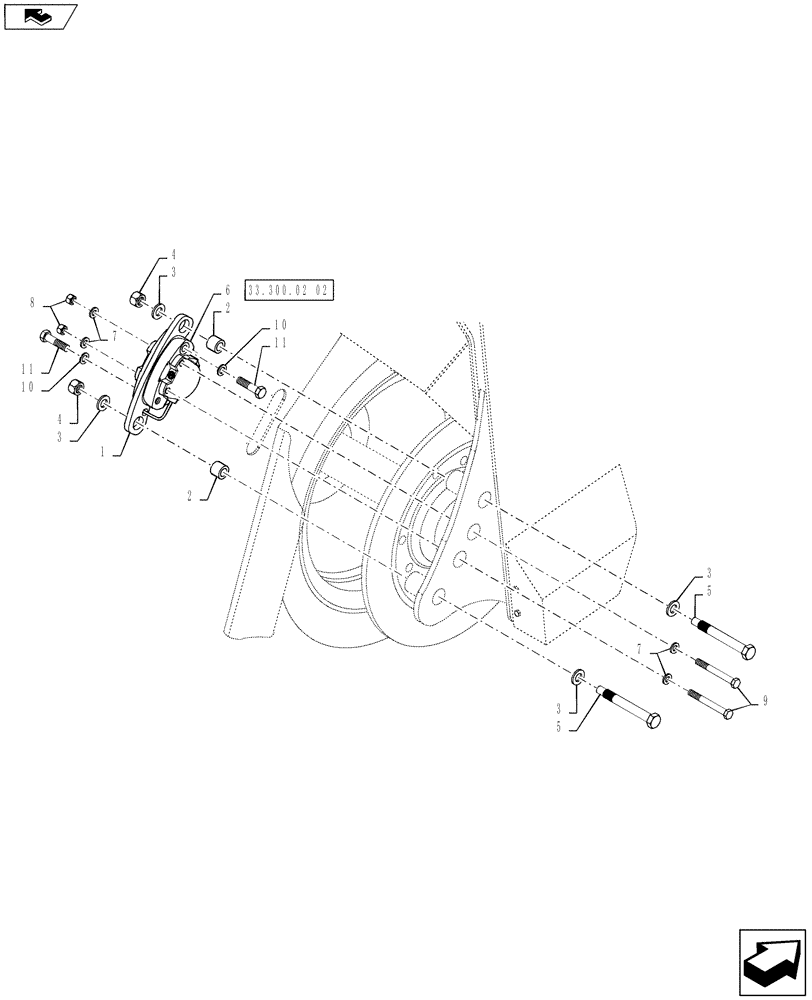

Запчасти Case IH TITAN 3530 (33.300.03[01]) - FRONT BRAKE CALIPER ASSEMBLY, BSN YCT033001 (33) - BRAKES & CONTROLS

1

87268288

SPACER

Brake

1шт.

2

87268287

SPACER

Bushing

2шт.

3

87529311

WASHER,26mm ID x 44mm OD x 5mm Thk

26 x 44 x 5 mm, HDN, DOR

4шт.

4

87344027

LOCK NUT

M24 - 3, 10.9, DOR

2шт.

5

343378A1

BOLT

M24 - 3 x 175, 10.9, DOR

2шт.

6

343996A1

CALIPER

Brake

1шт.

See Fig 33.300.03(02) For Service Parts

1шт.

7

87529306

WASHER,17.5mm ID x 30mm OD x 4mm Thk

17.5 X 30 X 4MM HDN DOR

4шт.

8

87344007

LOCK NUT

M16 - 2, 10.9, DOR

2шт.

9

87341861

BOLT,Hex, M16 x 140mm, Cl 10.9

M16 - 2 x 140, 10.9, DOR

2шт.

10

495-81039

WASHER,25/32" x 1 1/4" x .120"

2шт.

11

426-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

2шт.
