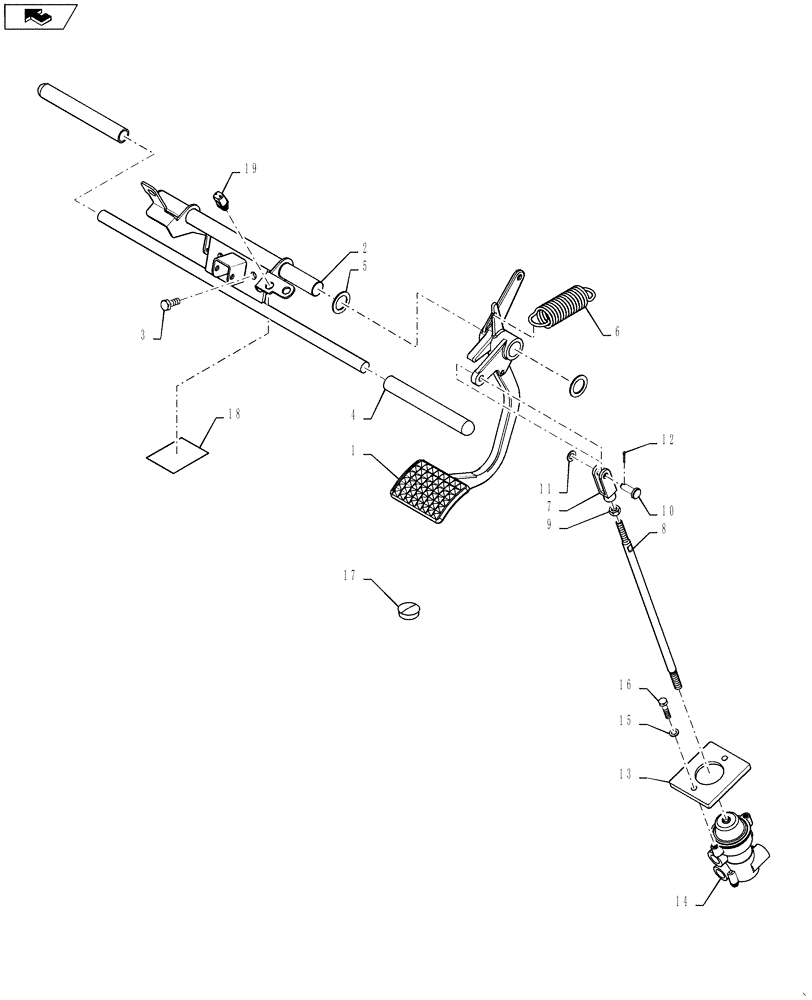

Запчасти Case IH TITAN 3530 (33.300.01) - SERVICE BRAKE CONTROL (33) - BRAKES & CONTROLS

1

222462A2

PEDAL

Brake

1шт.

2

370247A3

SUPPORT

Assembly, Pedal

1шт.

3

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

4

321961A1

MOLDING

Rubber

2шт.

5

281093A1

WASHER,Flat, 26.5mm x 38.1mm x 2mm

Flat

2шт.

6

278210A1

SPRING,Extension, 38.1mm OD x 114.3mm L

Extension

1шт.

7

713-1110

CLEVIS

Regular Adjustable M10 X 40

1шт.

8

416131A1

ROD

Brake, Threaded

1шт.

9

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

10

729-1030

CLEVIS PIN,M10 x 30

1шт.

11

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

12

733-2512

COTTER PIN,M2.5 x 12

1шт.

13

416130A1

PLATE

Brake Valve Adapter

1шт.

14

410873A1

VALVE

Service Brake

1шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

16

426-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 8

2шт.

17

353-422

PLUG,Dome, 1.250" hole, Nylon

1шт.

18

281893A1

BEARING

Pedal

1шт.

19

279265A2

SWITCH

Brake Light

1шт.
