(27.124.04) - DRIVELINE BREAKDOWN, WITH AUXILIARY TRANSMISSION

Запчасти Case IH TITAN 3530 (27.124.04) - DRIVELINE BREAKDOWN, WITH AUXILIARY TRANSMISSION (27) - REAR AXLE SYSTEM

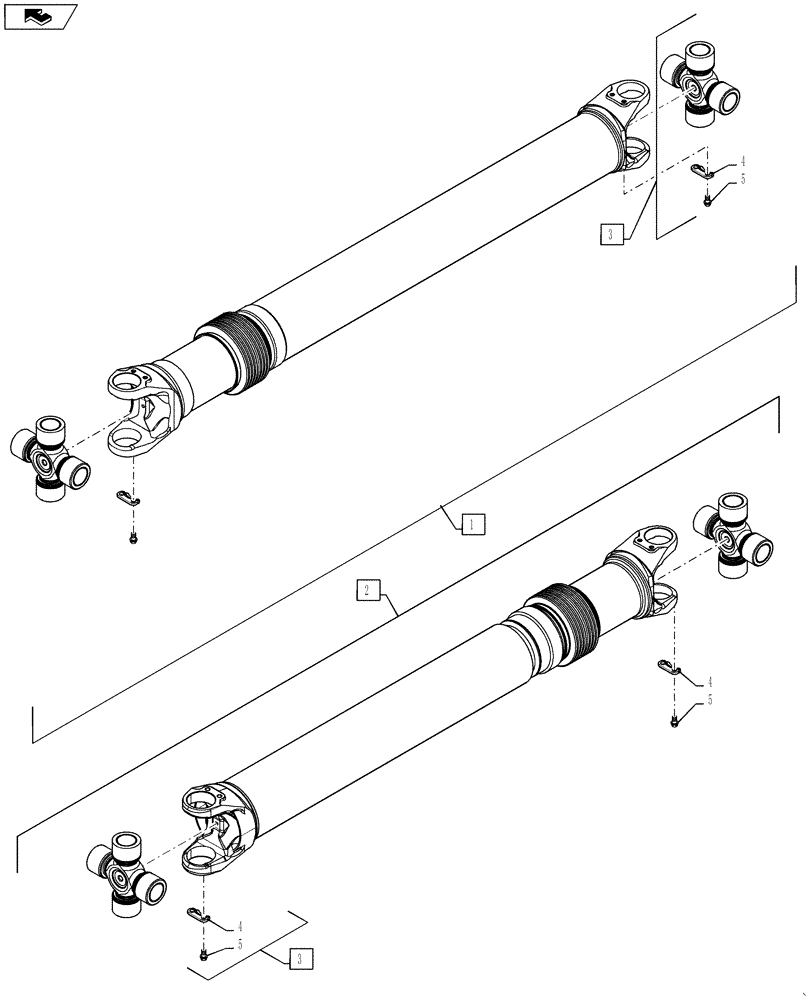

Схема запчастей Case IH TITAN 3530 - (27.124.04) - DRIVELINE BREAKDOWN, WITH AUXILIARY TRANSMISSION (27) - REAR AXLE SYSTEM
4
5
5
5
home
3
4
4
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN323970

DRIVE SHAFT

Slip, Auxiliary Transmission to Rear Axle, Includes Ref 3 - 5

1шт.

2

84155081

DRIVE SHAFT

Slip, Transmission to Auxiliary Transmission, Includes Ref 3 - 5

1шт.

3

87269195

BEARING ASSY

Bearing, Cross, Drive Line, Includes Ref 4 -5

2шт.

4

BN326111

RETAINER CUP

4шт.

5

BN326112

BOLT

Cup Retainer

8шт.
