(27.124.03) - DRIVELINE MOUNTING, WITH AUXILIARY TRANSMISSION

Запчасти Case IH TITAN 3530 (27.124.03) - DRIVELINE MOUNTING, WITH AUXILIARY TRANSMISSION (27) - REAR AXLE SYSTEM

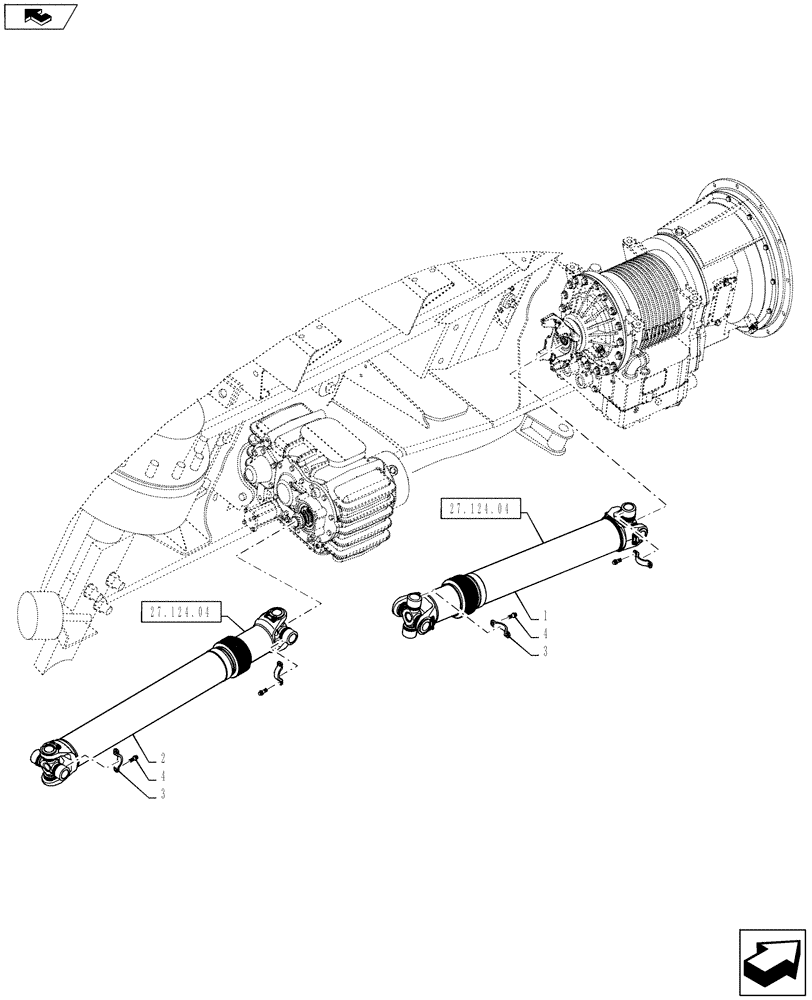

Схема запчастей Case IH TITAN 3530 - (27.124.03) - DRIVELINE MOUNTING, WITH AUXILIARY TRANSMISSION (27) - REAR AXLE SYSTEM
27.124.04
27.124.04
3
4
home
4
1
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84155081

DRIVE SHAFT

Front, Transmission To Auxiliary Transmission

1шт.

2

BN323970

DRIVE SHAFT

Rear, Auxiliary Transmission To Rear Axle

1шт.

3

BN326109

STRAP

Yoke, Drive Line

8шт.

4

BN326110

BOLT

Yoke Strap, Drive Line

16шт.

Выбрано товаров: 4
