(27.100.03[02]) - REAR AXLE ASSY

Запчасти Case IH TITAN 3530 (27.100.03[02]) - REAR AXLE ASSY (27) - REAR AXLE SYSTEM

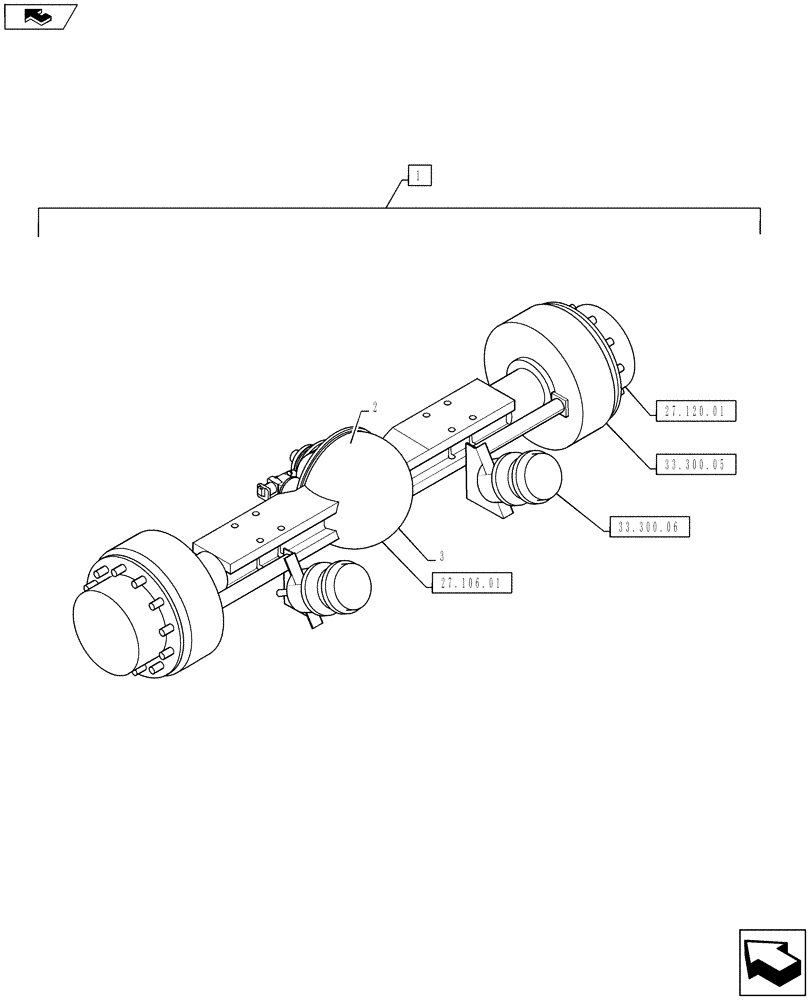

Схема запчастей Case IH TITAN 3530 - (27.100.03[02]) - REAR AXLE ASSY (27) - REAR AXLE SYSTEM
33.300.05
home
2
27.106.01
27.120.01
3
1
33.300.06
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84580034

AXLE

Rear, With Automatic Slack Adjusters, 2 Speed, 16.56/23.10, Complete, Includes Ref 2 - 3 And All Parts On Fig 27.106.01, 27.120.01, And 33.300.05

1шт.

2

84588817

BREATHER

Checked, 3/8 NPT

1шт.

3

87271282

PLUG

Internal, HEX, M12 x 1.5

1шт.
