(27.100.02) - REAR AXLE MOUNTING WITH AUXILIARY TRANSMISSION

Запчасти Case IH TITAN 3530 (27.100.02) - REAR AXLE MOUNTING WITH AUXILIARY TRANSMISSION (27) - REAR AXLE SYSTEM

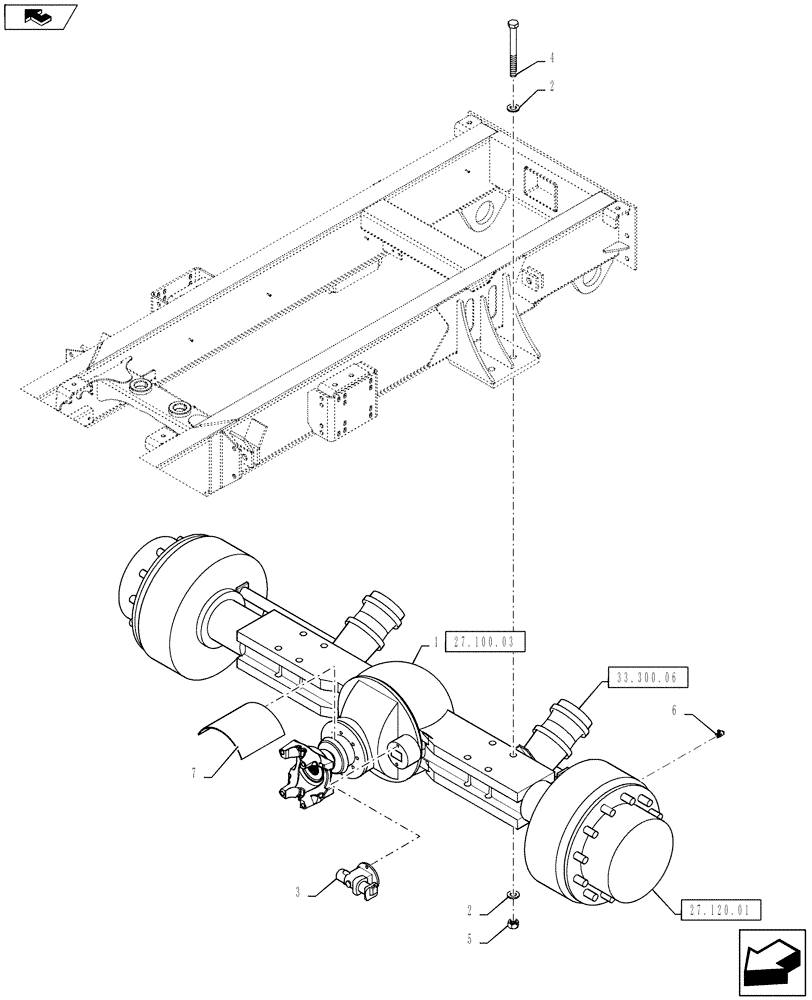

Схема запчастей Case IH TITAN 3530 - (27.100.02) - REAR AXLE MOUNTING WITH AUXILIARY TRANSMISSION (27) - REAR AXLE SYSTEM
1
2
5
6
4
2
3
27.120.01
27.100.03
33.300.06
home
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87493492

AXLE

Rear

1шт.

2

87529235

WASHER,1.06" ID x 2" OD x 0.21" Thk

1.0625 x 2 x 0.209, HTS, DOR

16шт.

3

BN2407953

SHIFTING UNIT

Rear Axle 2-Speed Pneumatic Shifter

1шт.

4

BN319750

BOLT

1 - 14 X 11, GR 8

8шт.

5

BN1470411F

LOCK NUT

NF 1-14 Flex Lock

8шт.

6

BN41288

LUBE NIPPLE

1/8-27 X 90 DEG

2шт.

7

87269589

GUARD

U-Joint

1шт.

Выбрано товаров: 7
