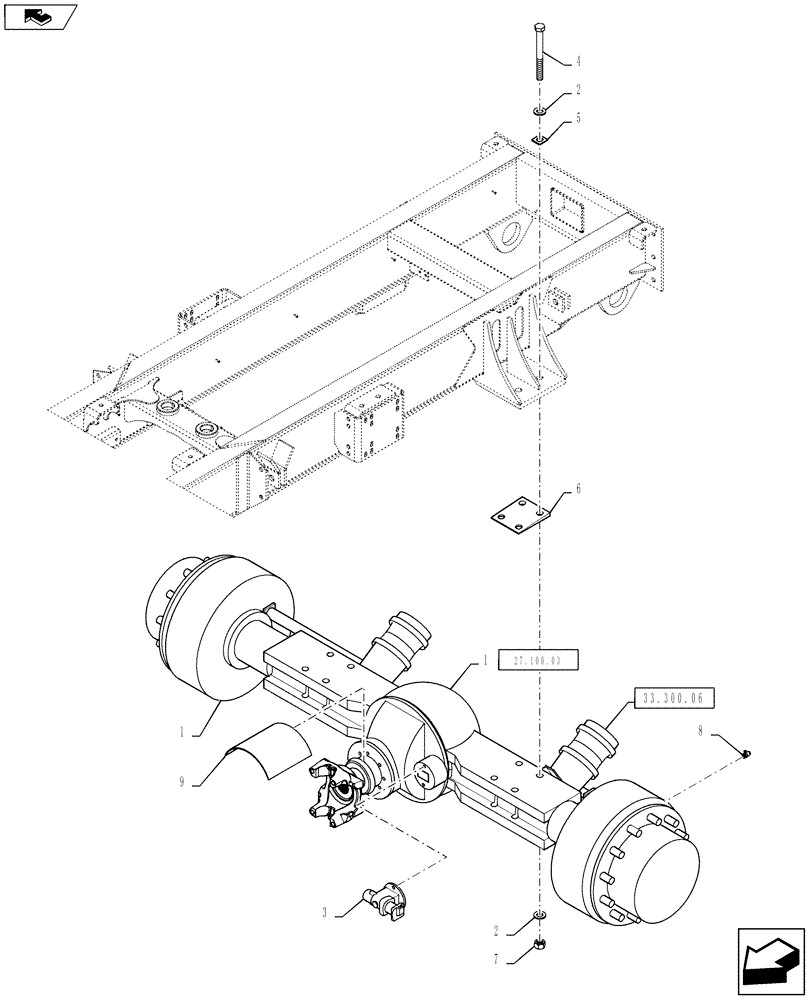

Запчасти Case IH TITAN 3530 (27.100.01) - REAR AXLE MOUNTING WITHOUT AUXILIARY TRANSMISSION (27) - REAR AXLE SYSTEM

1

87493492

AXLE

Rear

1шт.

See Fig 27.100.03 For Service Parts

1шт.

2

87529235

WASHER,1.06" ID x 2" OD x 0.21" Thk

1.0625 x 2 x 0.209, HTS, DOR

16шт.

3

BN2407953

SHIFTING UNIT

Rear Axle 2-Speed Pneumatic Shifter

1шт.

4

BN314729

BOLT

1 - 14 X 11, GR 8

8шт.

5

343357A1

WASHER

Axle Washer

8шт.

6

343359A1

WEDGE

Castor Alignment

2шт.

7

BN1470411F

LOCK NUT

NF 1-14 FLEX LOCK

8шт.

8

BN41288

LUBE NIPPLE

1/8-27 X 90 DEG

2шт.

9

87269589

GUARD

U-Joint

1шт.
