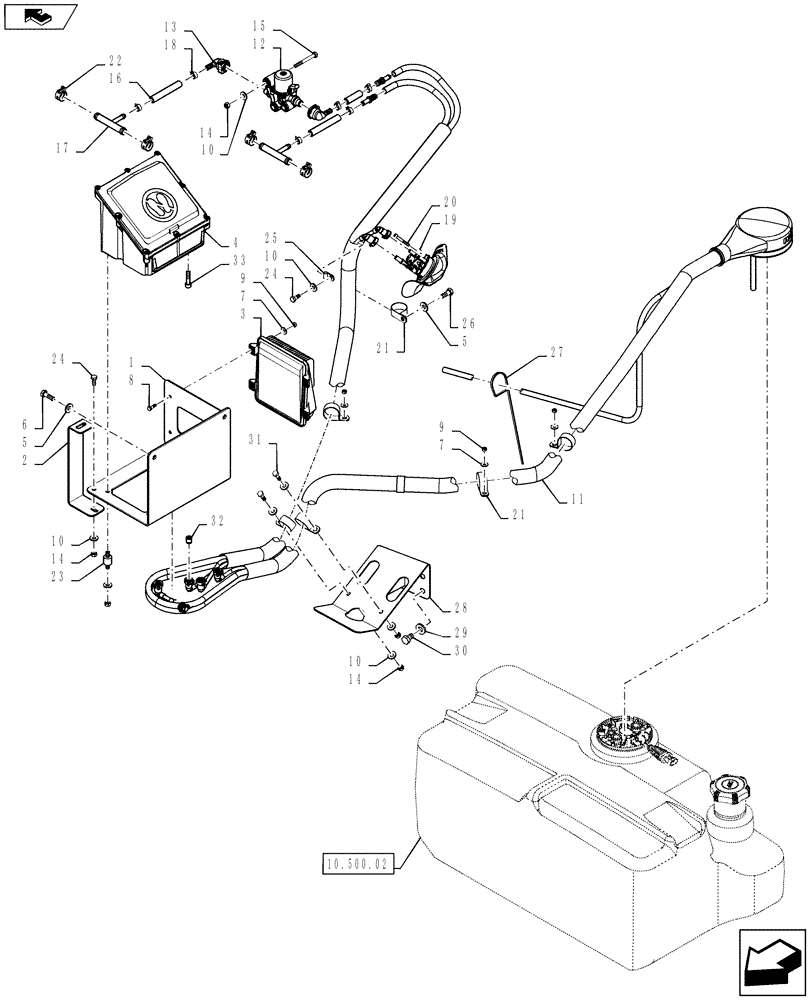

Запчасти Case IH TITAN 3530 (10.500.03) - DEF CONTROLER, INJECTOR, AND LINES (10) - ENGINE

1

84370062

MOUNT

DEF Supply Module

1шт.

2

84380550

SUPPORT

DEF Supply Module

1шт.

3

84383005

CONVERTER,12V To 24V

DC/DC, Serial Range: 12V-24V

1шт.

4

84246892

MODULE

DEF Supply ECU

1шт.

4

84246892R

REMAN-MODULE

1шт.

4

84246892C

CORE-MODULE

Return Number

1шт.

5

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

3шт.

6

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

7

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x 18 x 1.6 mm, CST, DOR

8шт.

8

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

9

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

8шт.

10

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

16шт.

11

84381102

HOSE

3 Wheel DEF Assembly

1шт.

12

84151635

HEATER VALVE

DEF

1шт.

13

84182163

FITTING

1шт.

14

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

10шт.

15

86980387

BOLT,Hex, M8 x 70mm, Cl 8.8

M8 - 1.25 x 70, 8.8, DOR

3шт.

16

84272204

HOSE,9.52mm ID x 100mm L, SAE 30R7

Radiator, Deaeration

2шт.

17

84381516

TEE

DEF Heater

2шт.

18

1348264C1

HOSE CLAMP

3/8" ID

4шт.

19

84247021

MODULE,Dosing Injector

Urea Dosing Injector

1шт.

19

84247021R

REMAN-MODULE ,Dosing Injector

Reman, Urea Dosing Injector

1шт.

19

84247021C

CORE-MODULE,Dosing Injector

Core, Urea Dosing Injector

1шт.

20

84233542

HEX SOC SCREW

M6 x 40 Class 12.9

3шт.

21

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

7шт.

22

1954736C1

HOSE CLAMP,#24

4шт.

23

84324608

ISOLATOR,20mm OD x 52mm L

Rubber

4шт.

24

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

25

515-2279

CLAMP,5/16", Insul, 5/16" Bolt

1шт.

26

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

27

BN570007

STRAP

Black, 14-1/2" Long

8шт.

28

84545316

MOUNT

DEF Line

1шт.

29

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 X 28 X 4MM DOR

4шт.

30

87310332

BOLT

.500F X .75 GR8 DOR

4шт.

31

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

32

84367903

FILTER

Denox

1шт.

33

84247272

FILTER,In-Line

Inlet, Urea

1шт.
