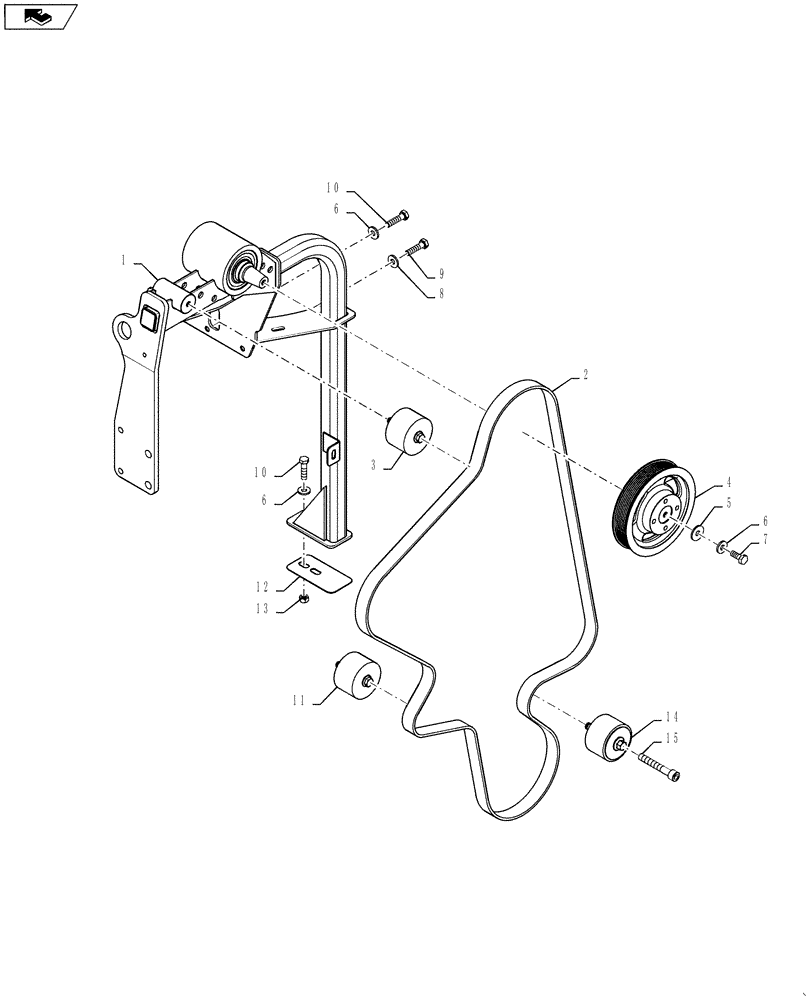

Запчасти Case IH TITAN 3530 (10.414.02) - FAN DRIVE ASSEMBLY (10) - ENGINE

1

84308159

SUPPORT

Fan Drive

1шт.

See Fig 10.414.03 For Service Parts

1шт.

2

84157791

V-BELT,2630.00 mm L, 8 Ribs

Fan And Engine Accessories

1шт.

3

504356034

IDLER

1шт.

4

84256390

GROOVED PULLEY

8 Grooves

1шт.

5

86981677

WASHER,11mm ID x 30mm OD x 2.5mm Thk

1шт.

6

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

7

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

8

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

9

86980383

BOLT,Hex, M8 x 40mm, Cl 8.8

M8 - 1.25 x 40, 8.8, DOR

2шт.

10

86980403

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

3шт.

12

84172904

PLATE

Fan Drive Shim

1шт.

11

504356836

IDLER

Alternator Idler

1шт.

13

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

14

504006261

IDLER

1шт.

15

47379702

SCREW

M12 X 80, 10.9, ZND

1шт.
