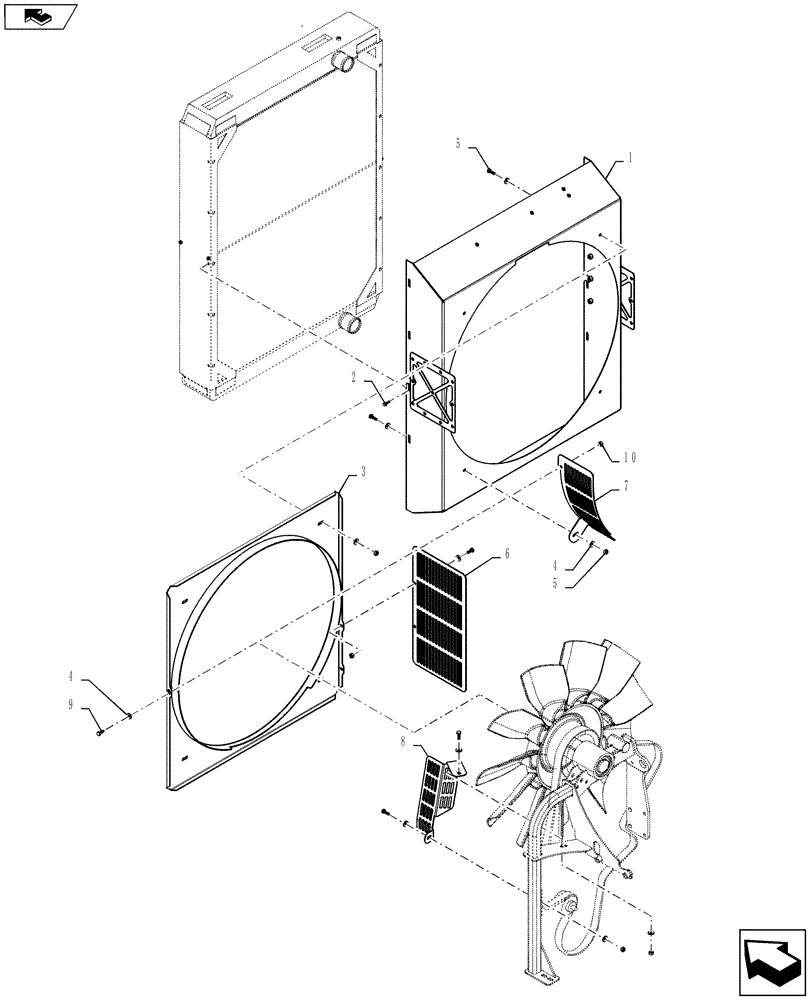

Запчасти Case IH TITAN 3530 (10.406.04) - FAN SHROUD (10) - ENGINE

1

84220886

SHROUD

Fan

1шт.

2

87343134

SERRATED BOLT

1/4-20 X 3/4, DOR

8шт.

3

84226289

PLATE

Fan Guard

1шт.

4

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

15шт.

5

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

6

84201558

GUARD

Fan

1шт.

7

84257790

GUARD

Fan

1шт.

8

84201897

GUARD

Belt

1шт.

9

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

10

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

9шт.
