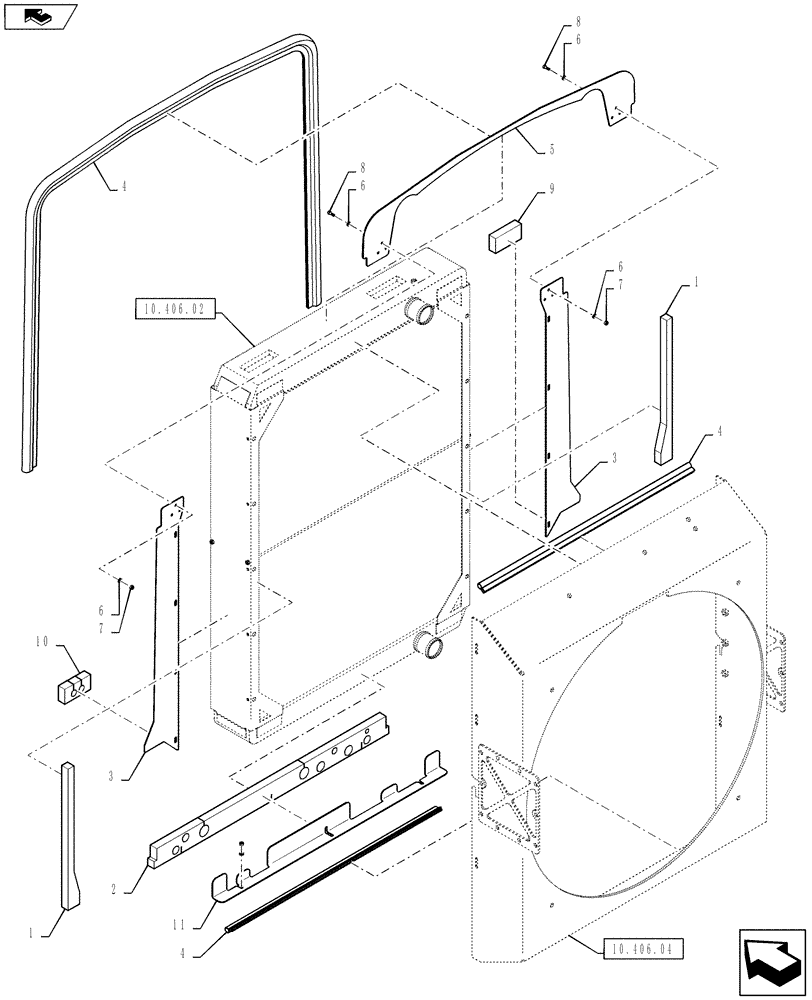

Запчасти Case IH TITAN 3530 (10.406.03) - RADIATOR BAFFLE (10) - ENGINE

1

84324441

SEAL

Foam, Lower Side

2шт.

2

84218296

SEAL

Foam, Lower Radiator

1шт.

3

84220900

FILLER

Side, Shroud

2шт.

4

F43117X

SEAL

Radiator, Bulk, Serial Range: Cut-Length

1шт.

5

47593337

PLATE

Radiator Seal, Top

1шт.

6

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2 mm, HDN, DOR

31шт.

7

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

17шт.

8

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

14шт.

9

87268819

FOAM

Right Side

1шт.

10

87268820

FOAM

Left Side

1шт.

11

87267016

ANGLE

Lower Radiator Foam

1шт.
