Запчасти Case IH TITAN 3530 (10.254.02) - MUFFLER (10) - ENGINE

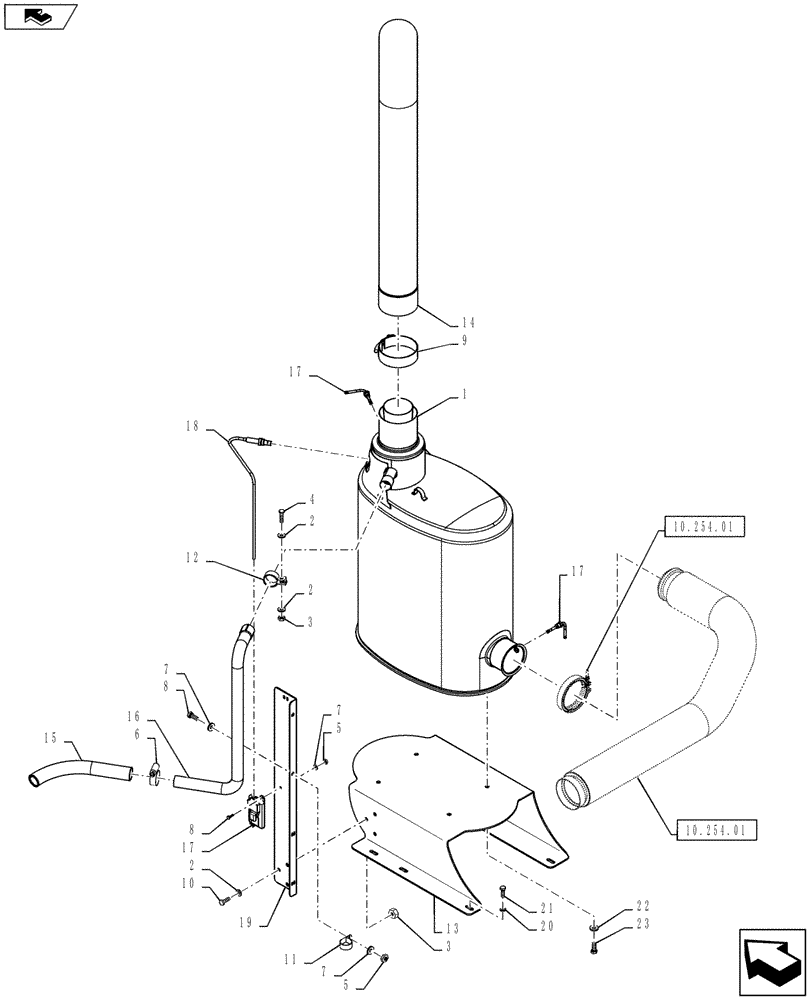

Схема запчастей Case IH TITAN 3530 - (10.254.02) - MUFFLER (10) - ENGINE
10.254.01
10.254.01
10
6
2
5
17
17
13
20
18
7
11
2
19
7
23
3
22
8
16
3
12
1
14
8
4
21
5
7
home
2
17
9
15

Артикул

Название

Примечание

Количество

1

84288725

MUFFLER

SCR, 24L

1шт.

2

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

18шт.

3

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

6шт.

4

86980403

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

1шт.

5

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

6

214-3232

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm, W/ Liner

1шт.

7

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x 18 x 1.6 mm, CST, DOR

2шт.

8

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

9

BN313592

CLAMP

5" Bent Bolt

1шт.

10

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

5шт.

11

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

2шт.

12

334985A1

CLAMP

Exhaust

1шт.

13

84367864

MOUNT

SCR

1шт.

14

84369518

EXHAUST SYSTEM PIPE

Stack

1шт.

15

84369480

HOSE

Aspirator

1шт.

16

84370102

TUBE

Pre-Cleaner

1шт.

17

87482353

SENSOR

Exhaust Temperature

2шт.

18

84422745

SENSOR

NOX

1шт.

19

84368961

MOUNT

NOX Sensor

1шт.

20

BN50146

WASHER,3/8", Stainless

6шт.

21

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

6шт.

22

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 X 28 X 4MM, DOR

4шт.

23

86980420

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

Выбрано товаров: 23
