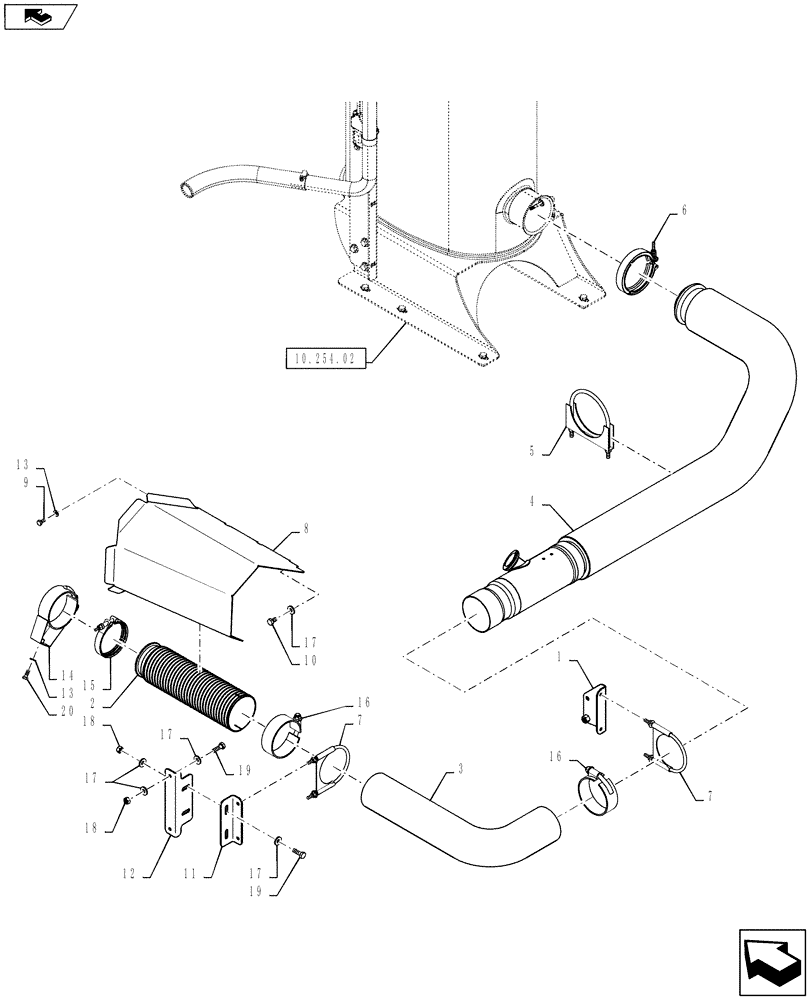

Запчасти Case IH TITAN 3530 (10.254.01) - EXHAUST, TURBO TO MUFFLER (10) - ENGINE

1

84472467

MOUNT

DEF Lines

1шт.

2

84368127

ADAPTER

Turbo

1шт.

3

84472630

EXHAUST SYSTEM PIPE

1шт.

4

84472634

EXHAUST SYSTEM PIPE

1шт.

5

BN306386

CLAMP,129.5mm ID

5" Muffler

1шт.

6

87487061

CLAMP,116.9mm - 118.2mm

Exhaust

1шт.

7

BN25927

CLAMP,104.8mm ID

-4 Muffler

2шт.

8

84472640

HEAT SHIELD

Turbo

1шт.

9

86980378

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

10

86980398

BOLT,Hex, M10 - 1.5 x 16mm, Cl 8.8, DOR

M10-1.5 x 16, 8.8, DOR

2шт.

11

84367862

MOUNT

Exhaust Pipe

1шт.

12

84367860

MOUNT

Exhaust Pipe

1шт.

13

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

2шт.

14

84473313

CLAMP

Heat Shield

1шт.

15

A170807

CLAMP,102mm ID

T-Bolt Turbo

1шт.

16

87314920

CLAMP

Muffler, Engine Exhaust

2шт.

17

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

10шт.

18

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

19

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

20

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.
