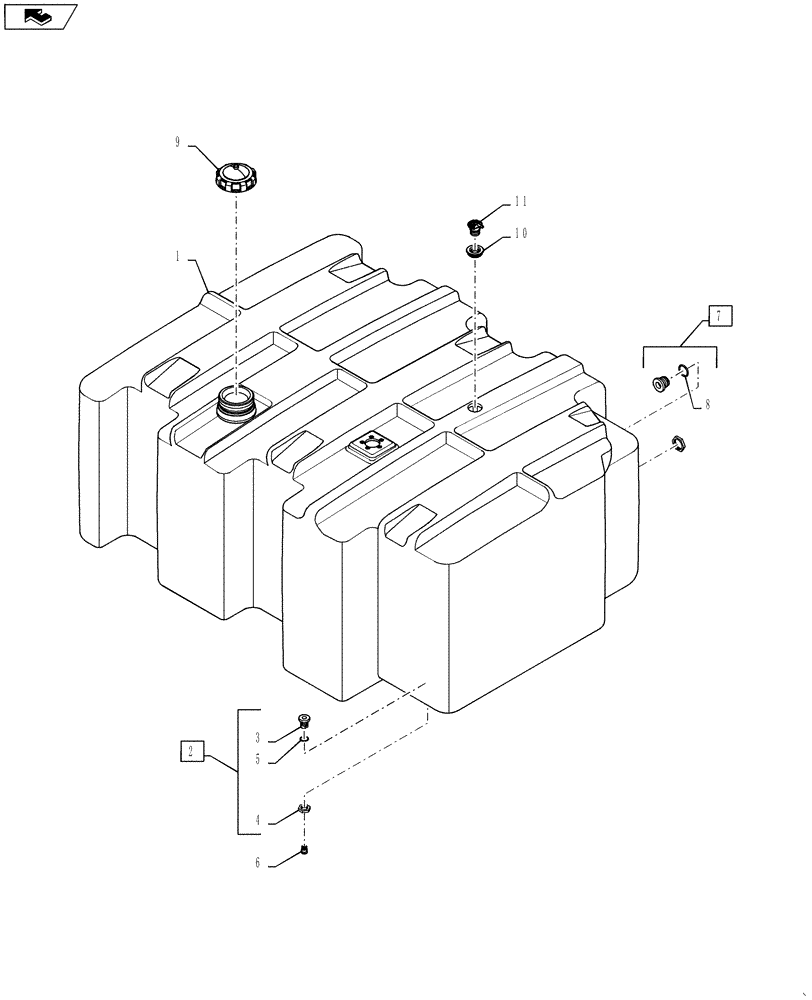

Запчасти Case IH TITAN 3530 (10.216.02) - FUEL TANK AND FITTINGS (10) - ENGINE

1

84360646

FUEL TANK

150 Gallon, Poly

1шт.

2

BN306082

FITTING

Drain Assembly, Includes Ref 3 - 5

2шт.

3

BN68500

FITTING

Fuel, Short Brass

1шт.

4

BN68499

NUT

LH Thread, Fuel Fitting

1шт.

5

BN68501

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

Fuel Fitting

1шт.

6

217-405

PLUG,Hex Hd, 1/4" - 18 NPT

2шт.

7

344475A1

FITTING

Assembly, Includes Ref 8

2шт.

8

238-5216

O-RING,0.139" Thk x 1.109" ID, -216, Cl 5, 75 Duro

1шт.

9

BN324706

CAP

Fuel Tank, Non-Vented

1шт.

9

BN68502

CAP

Fuel Tank, Vented, Optional

1шт.

10

255094A1

GROMMET

Roll Over Valve

1шт.

11

275800A1

VALVE STEM

Roll Over Valve

1шт.
