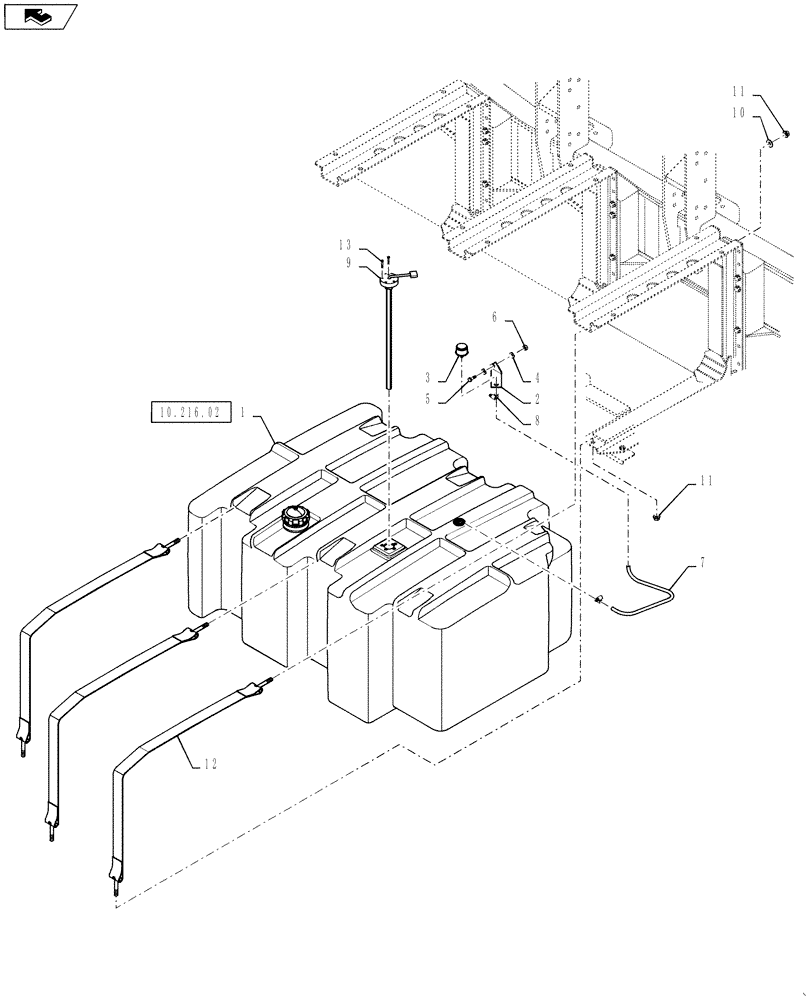

Запчасти Case IH TITAN 3530 (10.216.01[01]) - FUEL TANK MOUNTING (10) - ENGINE

1

84360646

FUEL TANK

Assembly, 150 Gal

1шт.

See Fig 10.216.02 For Service Parts

1шт.

2

87269750

BRACKET, SUPPORTING

Fuel Tank Vent

1шт.

3

86999949

FUEL FILTER

Air Vent

1шт.

4

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

2шт.

5

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

6

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.

7

47591137

HOSE

Fuel Tank Vent

1шт.

8

87487837

CLAMP,0.50" - 0.91"

Hose, 8 0.91/0.50 F SST 300

2шт.

9

84176270

SENSOR

Fuel Level

1шт.

10

87310599

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

0.5 x 1.25 x 0.083, CST, DOR

3шт.

11

87343935

FLANGE NUT

Flange, 1/2-13, GR G, DOR

6шт.

12

84369529

STRAP

Fuel And DEF Tank

3шт.

13

87270794

BOLT,Hex, M5 x 30mm, SST

M5 X 30, S.S.

5шт.
