Запчасти Case IH TITAN 3530 (10.214.01) - FUEL LINES AND FITTINGS (10) - ENGINE

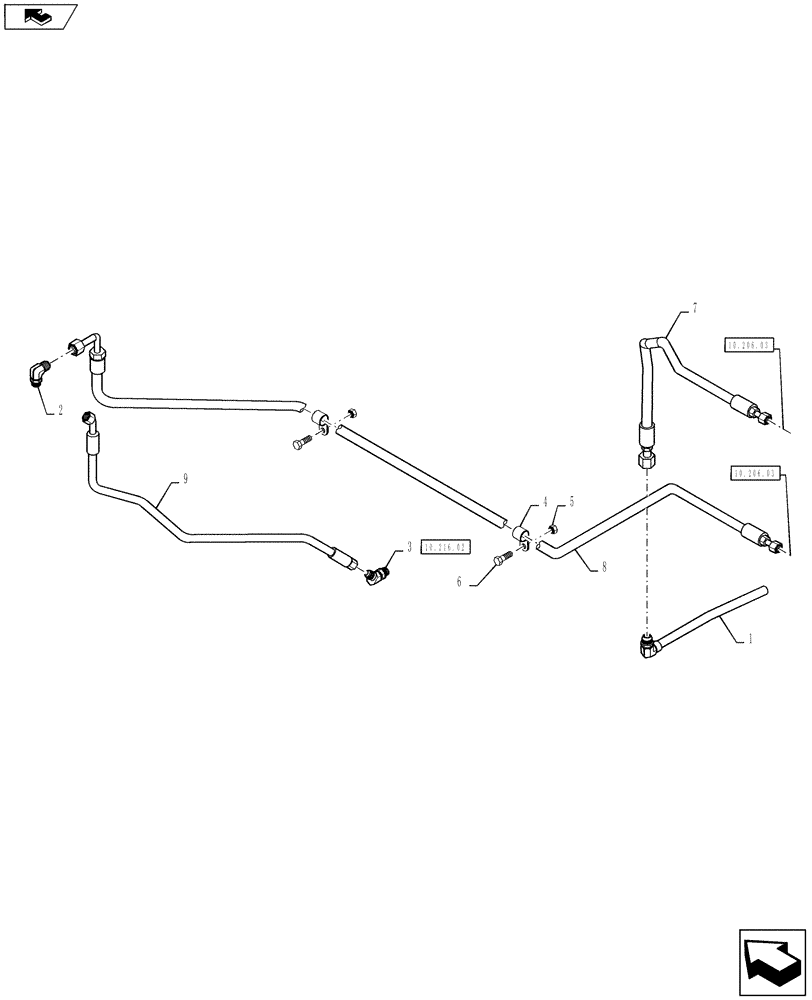

Схема запчастей Case IH TITAN 3530 - (10.214.01) - FUEL LINES AND FITTINGS (10) - ENGINE
4
3
8
home
2
1
6
10.216.02
10.206.03
10.206.03
9
5
7

Артикул

Название

Примечание

Количество

1

87269157

FUEL TUBE,332 mm L

Fuel Pick-Up

1шт.

2

5154710

ELBOW,3/4"-16 UNF, M16 x 1.5

90º, 3/4" - 16 Male x M16 - 1.5

1шт.

3

218-1096

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/2"-14, NPTF

1шт.

4

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

2шт.

5

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

6

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

7

84569131

FUEL HOSE

Fuel Tank To Fuel Filter Inlet

1шт.

8

84326476

FUEL HOSE

Fuel Filter Outlet To Engine ECU

1шт.

9

84422996

FUEL HOSE

Fuel Return To Tank

1шт.

Выбрано товаров: 9
