Запчасти Case IH TITAN 3530 (10.202.01) - AIR INTAKE PACKAGE (10) - ENGINE

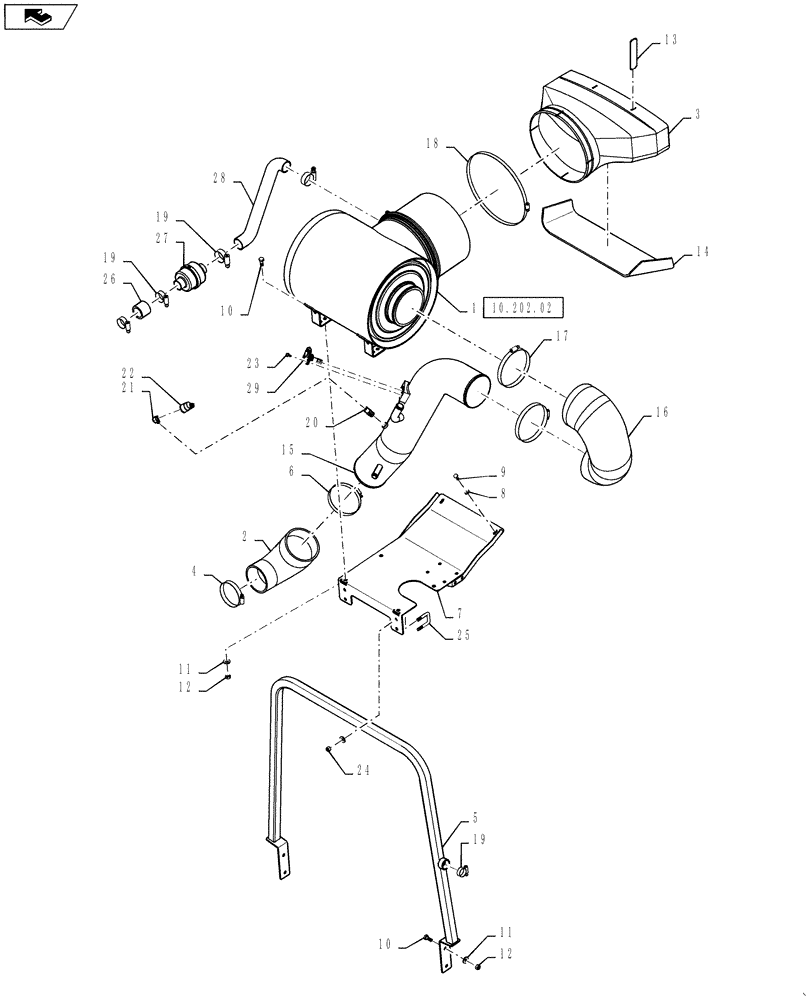

Схема запчастей Case IH TITAN 3530 - (10.202.01) - AIR INTAKE PACKAGE (10) - ENGINE
3
2
19
17
14
12
28
5
15
10
4
21
20
22
7
16
11
1
18
10.202.02
26
23
29
9
home
24
27
19
12
19
13
10
11
25
6
8

Артикул

Название

Примечание

Количество

1

47606527

AIR CLEANER

Complete

1шт.

See Fig 10.202.02 For Service Parts

1шт.

2

BN306335

ELBOW

90°, 5 x 4

1шт.

3

84141992

AIR DUCT

Intake

1шт.

4

214-3272

HOSE CLAMP,3-3/4" - 4-5/8", HD Worm, W/ Liner

1шт.

5

84194712

MOUNT

Air Cleaner

1шт.

6

214-3288

HOSE CLAMP,4-3/4" - 5-5/8", HD Worm, W/ Liner

1шт.

7

84194714

MOUNT

Air Cleaner

1шт.

8

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

2шт.

9

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

10

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

8шт.

11

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

12шт.

12

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

13

84180157

PLATE

Standoff

2шт.

14

344093A1

FOAM INSULATION

Reflective

1шт.

15

84363174

AIR INTAKE TUBE

1шт.

16

324459A1

ELBOW

180 Rubber

1шт.

17

214-32104

HOSE CLAMP,5-3/4" - 6-5/8", HD Worm, W/ Liner

2шт.

18

87012918

HOSE CLAMP,64mm - 317.5mm

1шт.

19

214-3232

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm, W/ Liner

EPDM

1шт.

20

D36264

FITTING

Adapter Air Cleaner

1шт.

21

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

1шт.

22

279492A1

RESTRICTION SWITCH

Air

1шт.

23

87698753

FLANGE BOLT,M6 x 12mm, Cl 10.9, Full Thd

Flange, M6 X 12, Full, 10.9 ZND

2шт.

24

87343974

NUT,Prev Torque, 3/8" - 16, Gr C, DOR

4шт.

25

BN319918

U-BOLT,SQ BND 1.31" ID x 3/8"

BOLT "U" 3/8 X 1.31 ID, DT

2шт.

26

84196070

HOSE

Aspirator

1шт.

27

307123A1

VALVE

Aspirator Check

1шт.

28

84196612

HOSE,38.10 mm ID x 389.00 mm

Aspirator

1шт.

29

87482355

SENSOR

Humidity And Temperature

1шт.

Выбрано товаров: 30
