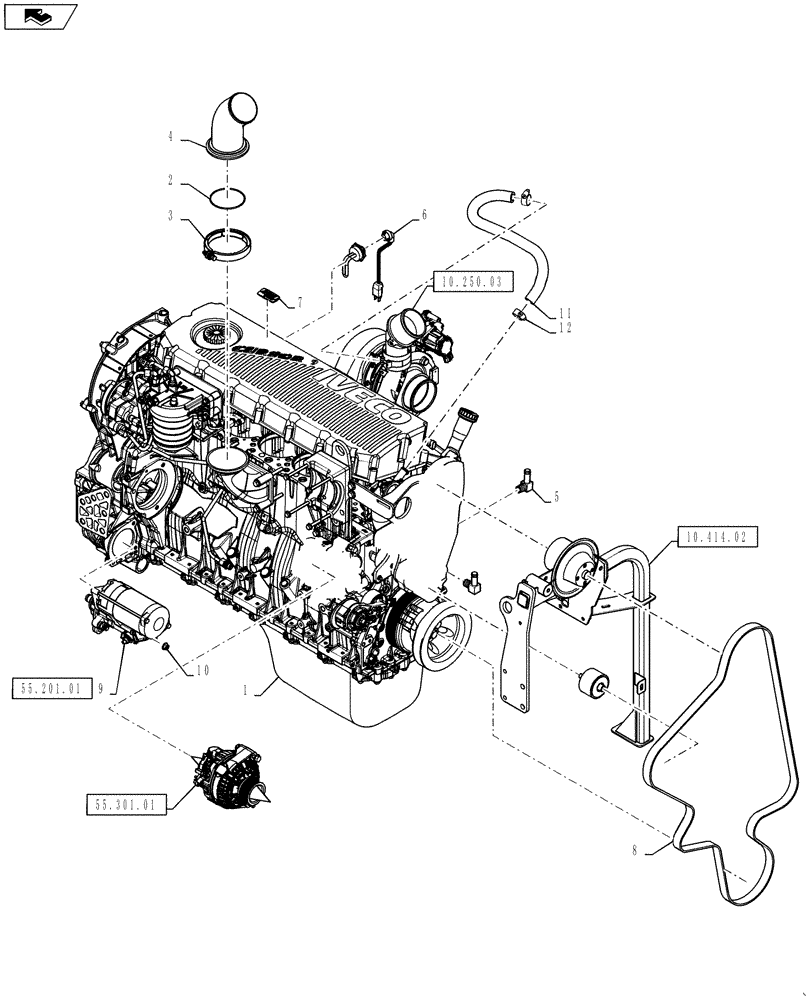

Запчасти Case IH TITAN 3530 (10.001.03) - ENGINE ASSEMBLY (10) - ENGINE

1

84559510

ENGINE,246kW, 6 Cylinders, W/ Turbocharger

Service, Cursor 9, FPT, Used on Titan 3030 and Titan 3530

1шт.

1

84559510R

Service, Cursor 9, FPT, Used on Titan 3030 and Titan 3530

1шт.

1

84559510C

Return Number

1шт.

2

238-6240

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

1шт.

3

87304529

SPECIAL CLAMP,125mm - 129mm

V-Band

1шт.

4

84152781

ELBOW

CAC Inlet

1шт.

5

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

2шт.

6

84438887

HEATER

Block

1шт.

7

84373430

EMBLEM

Case IH, Engine

1шт.

8

84157791

V-BELT,2630.00 mm L, 8 Ribs

Fan And Engine Accessories

1шт.

9

84150030

STARTER MOTOR,12V, 5kW

Denso, 12V

1шт.

9

84150030R

REMAN-STARTER,12V, 5kW

TITAN 3030, TITAN 3530 BOTH TIER 4 (2/12-)

1шт.

9

84150030C

CORE-STARTER,12V, 5kW

Return Number

1шт.

10

829-2310

FLANGE NUT,M10 x 1.5, Flg, Cl 10

3шт.

11

84530591

FLEXIBLE HOSE

Crankcase Breather

1шт.

12

87487835

CLAMP,0.69" - 1.25"

Hose

2шт.

13

84536921

CABLE TIE,203.2mm L

Fir Tree, Secure Engine Harness To Engine, Not Shown

2шт.
