Запчасти Case IH TITAN 3530 (90.156.01) - CAB WINDSHIELD AND REAR WINDOW (90) - PLATFORM, CAB, BODYWORK AND DECALS

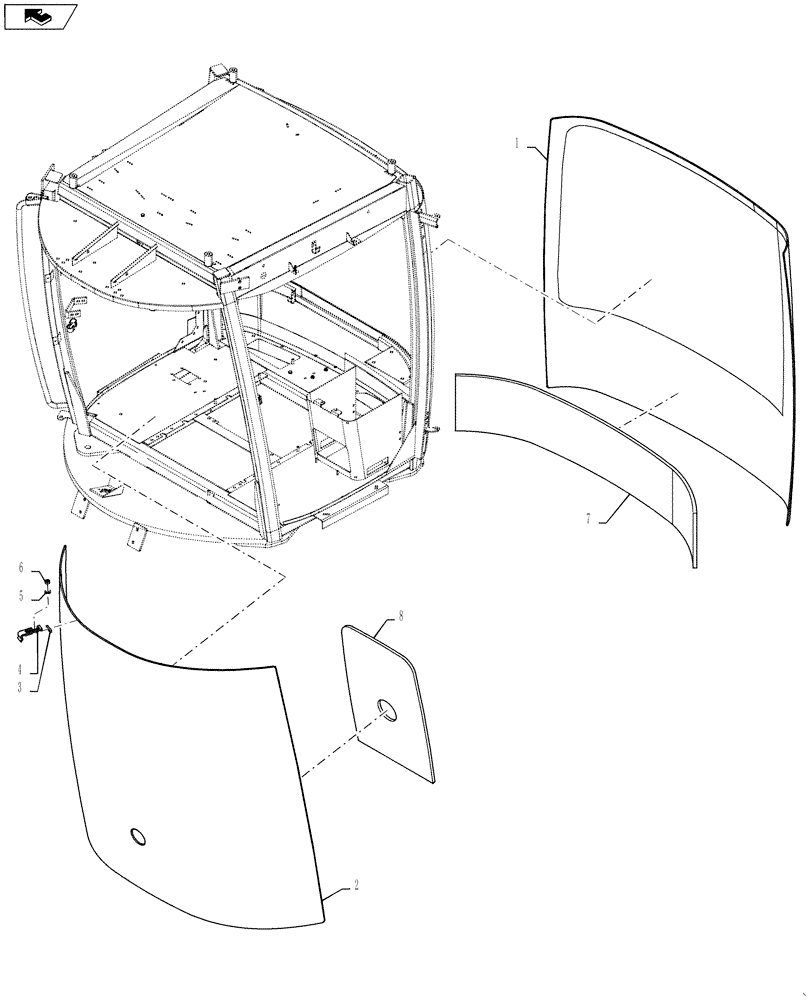

Схема запчастей Case IH TITAN 3530 - (90.156.01) - CAB WINDSHIELD AND REAR WINDOW (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
5
8
7
4
6
1
2
home

Артикул

Название

Примечание

Количество

1

84358821

GLASS

Rear

1шт.

2

84376917

WINDSHIELD

Laminated

1шт.

3

87543673

SPACER

Glass Bonded

48шт.

4

117707A3

CLAMP

Window

5шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

6

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

7

259462A1

FOAM INSULATION

Barrier

1шт.

8

87309622

FOAM INSULATION

Barrier, Front Windshield

1шт.

Выбрано товаров: 8
