Запчасти Case IH TITAN 3530 (90.150.03) - PARKING BRAKE CONTROL MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

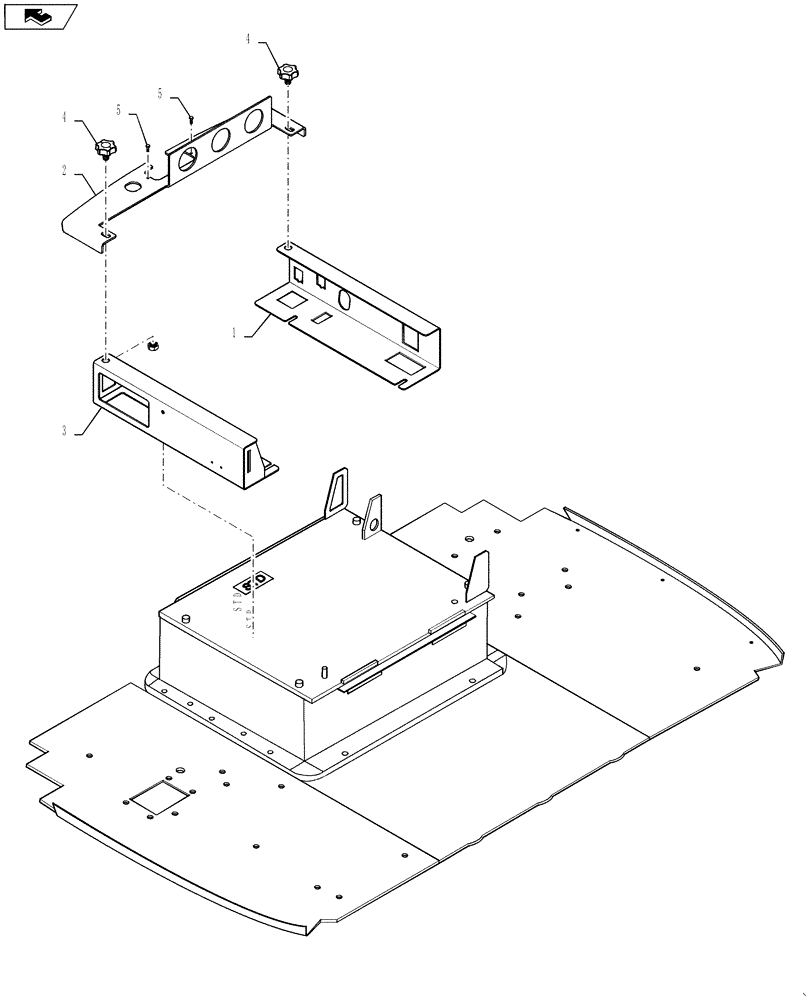

Схема запчастей Case IH TITAN 3530 - (90.150.03) - PARKING BRAKE CONTROL MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
2
home
1
4
3
4
str
std
5

Артикул

Название

Примечание

Количество

1

87269339

FRAME

Seat Cowling, LH

1шт.

2

87271609

SUPPORT

Wire Harness

1шт.

3

342840A1

FRAME

Seat Cowling, RH

1шт.

4

394133A1

KNOB

Battery Cover

2шт.

5

84206102

SCREW,7/8" - 24

12-24X7/8 HWH 4 TEK

3шт.

Выбрано товаров: 5
