Запчасти Case IH TITAN 3530 (90.150.01) - CAB FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS

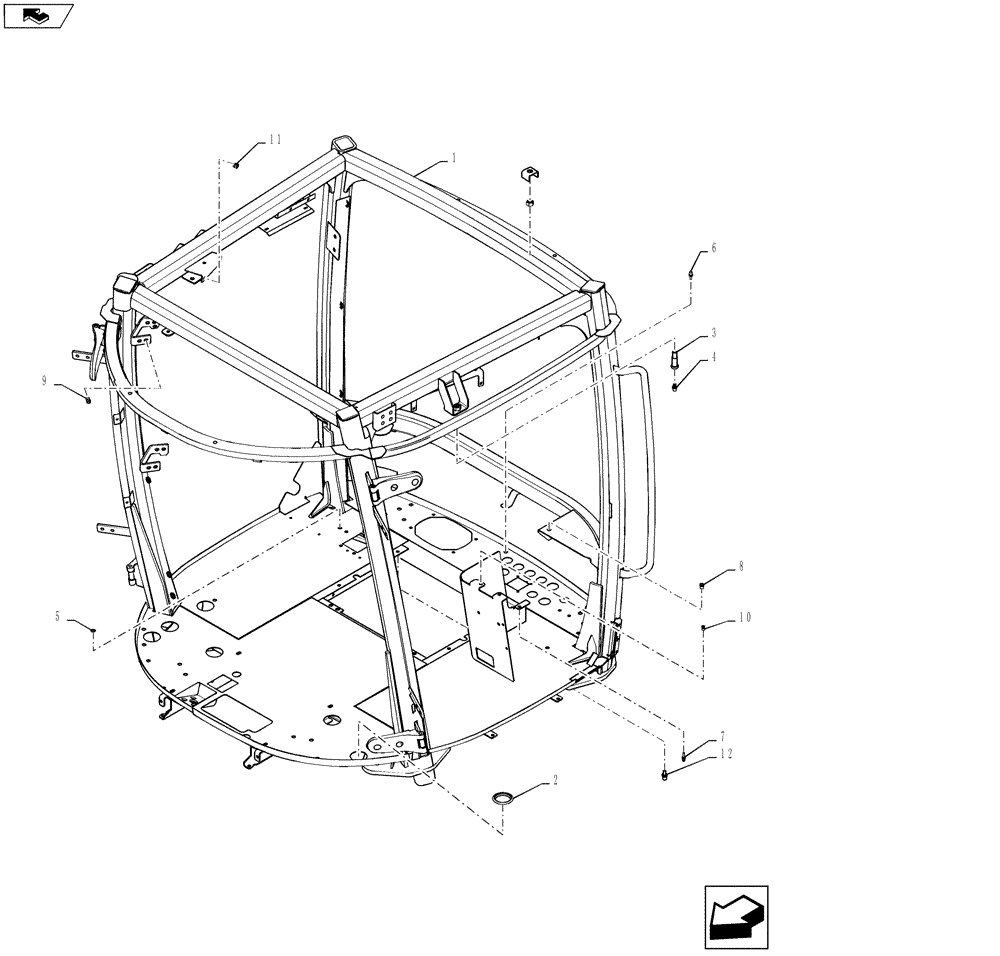

Схема запчастей Case IH TITAN 3530 - (90.150.01) - CAB FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
1
6
3
8
7
10
5
9
2
11
12

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Cab Frame

1шт.

2

353-593

PLUG

Button Recessed, Nominal 2.500

2шт.

3

442085A1

MOUNTING PARTS

Ball Stud

3шт.

4

3234063R1

BALL STUD,M10 x 1.5

Ball Stud

2шт.

5

64-146

PLUG

Cap .500, Black Poly

4шт.

6

408567A1

STUD

Threaded Captive

2шт.

7

440570A1

STUD

Threaded Captive

12шт.

8

408566A1

INSERT,M8

Threaded Knurled Open, M8

5шт.

9

379540A1

INSERT,M8

Threaded Knurled Open, M8

14шт.

10

404287A1

INSERT,M6

Threaded Knurled Open, M6

7шт.

11

322072A2

FASTENER

Plastic Expansion

7шт.

12

449068A1

STUD

Threaded Captive

6шт.

Выбрано товаров: 12
