Запчасти Case IH TITAN 3530 (90.124.07) - DELUXE AND LUXURY AIR SUSPENSION ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

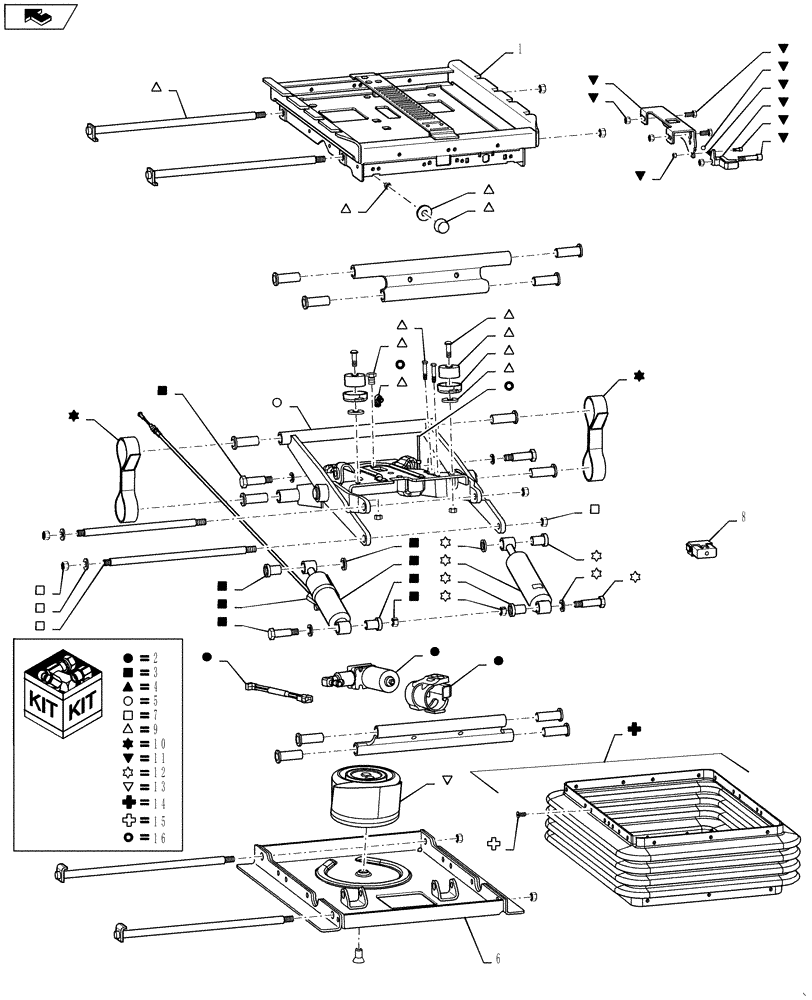

Схема запчастей Case IH TITAN 3530 - (90.124.07) - DELUXE AND LUXURY AIR SUSPENSION ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS
11
7
3
9
2
11
10
9
9
9
10
12
9
9
1
14
11
12
6
7
2
3
11
11
4
4
9
12
15
3
9
2
3
11
7
7
16
7
12
12
3
3
5
13
9
12
16
16
10
9
15
2
16
8
10
11
9
11
4
15
7
11
5
12
5
3
2
14
3
home
3
11
13
3
13
11
9
14
12
12

Артикул

Название

Примечание

Количество

84426027

SUSPENSION

Complete Air Suspension

1шт.

1

84482057

HOUSING

Upper Suspension

1шт.

2

84482048

KIT

Air Compressor And Tubing

1шт.

3

84482045

KIT

Adjustable Shock

1шт.

4

84482053

KIT

Bearing Shaft

2шт.

5

84482056

KIT

Scissor Arm

1шт.

6

84482058

HOUSING

Lower Suspension

1шт.

7

84482052

KIT

Linkage Shaft

1шт.

8

84482040

WIRE HARNESS

Seat Suspension

1шт.

9

84482049

KIT

Bumper

1шт.

10

84482050

KIT

Tether Belt

2шт.

11

84482046

KIT

Adjustable Shock Lever

1шт.

12

84482044

KIT

Fixed Shock

1шт.

13

84482047

KIT

Air Spring, Includes Elbow and Tubing

1шт.

14

84482042

KIT

Seat Boot, Includes Ref 15

1шт.

15

84482043

KIT

Boot Retainer

1шт.

16

84482041

KIT

Hose and Fitting

1шт.

Выбрано товаров: 17
