Запчасти Case IH TITAN 3530 (90.124.05) - LUXURY LEATHER SEAT ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

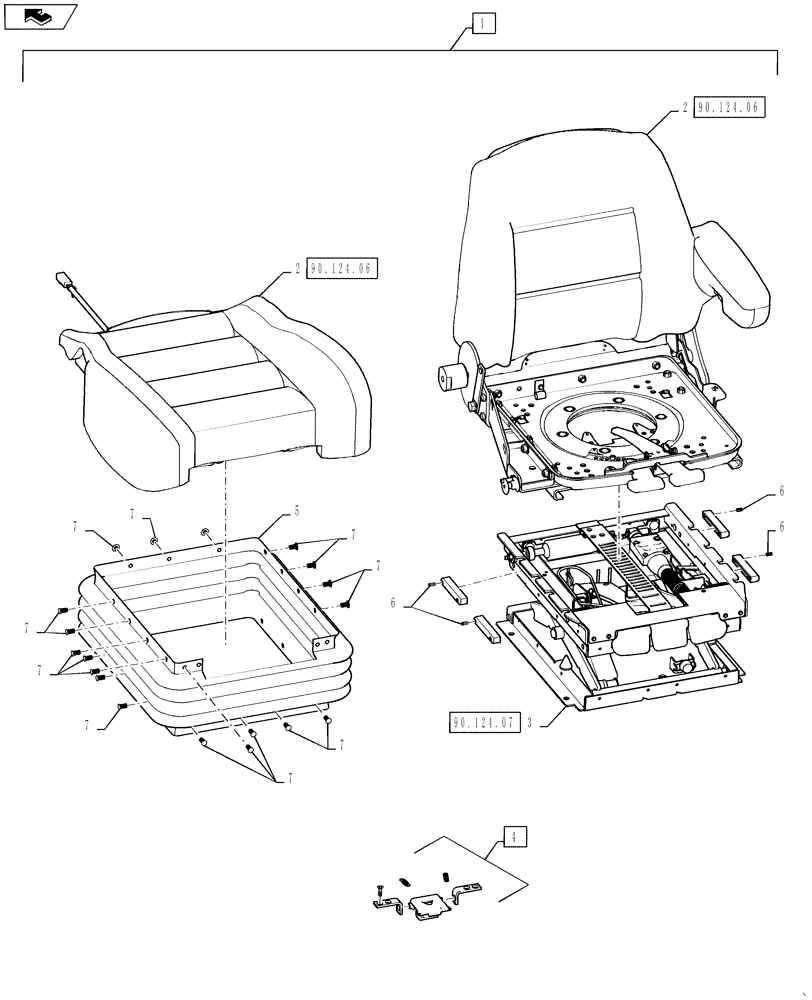

Схема запчастей Case IH TITAN 3530 - (90.124.05) - LUXURY LEATHER SEAT ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
7
2
2
3
6
7
7
6
1
7
6
home
7
90.124.07
7
4
90.124.06
90.124.06
7
7
7

Артикул

Название

Примечание

Количество

1

84549741

SEAT

Complete, Luxury, Red Leather Seat With Air Suspension And 3 Position Heat

1шт.

2

84581880

SVC MAINTENANCE KIT

Assembly, Seat Top, Red Leather

1шт.

See Fig 90.124.06 For Service Parts

1шт.

3

84406039

SERVICE KIT

Complete Air Suspension

1шт.

See Fig 90.124.07 For Service Parts

1шт.

4

87347934

LATCH

Slide, Kit

1шт.

5

87347943

SERVICE KIT

Seat Boot

1шт.

6

302016A1

PACKAGE,SERVICE

Slide Puck Kit

4шт.

7

333659A1

PACKAGE,SERVICE

Boot Button Kit

1шт.

Выбрано товаров: 9
