Запчасти Case IH TITAN 3530 (90.124.02) - DELUXE SEAT ASSEMBLY, CLOTH (90) - PLATFORM, CAB, BODYWORK AND DECALS

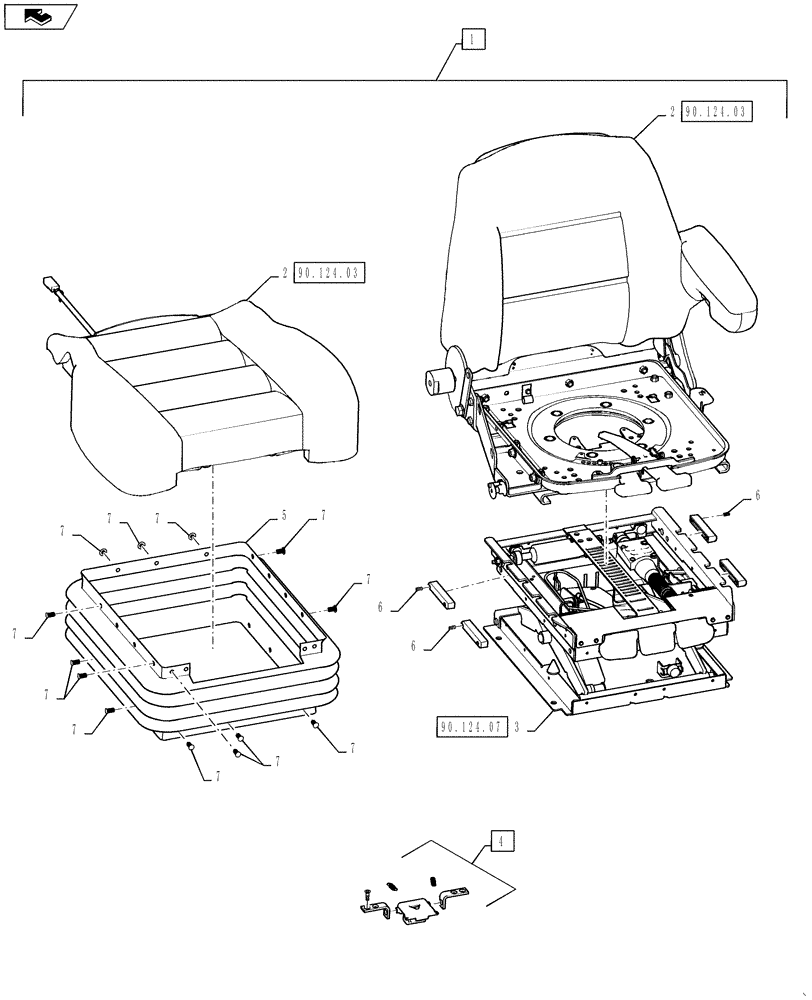

Схема запчастей Case IH TITAN 3530 - (90.124.02) - DELUXE SEAT ASSEMBLY, CLOTH (90) - PLATFORM, CAB, BODYWORK AND DECALS
7
6
3
7
6
1
5
2
home
6
90.124.03
90.124.07
90.124.03
7
7
7
4
7
7
7
7
7
2
7

Артикул

Название

Примечание

Количество

1

84426012

DRIVER SEAT

Complete, Deluxe, Cloth Seat With Air Suspension, Includes Ref 2 - 7

1шт.

2

84162220

SEAT

Assembly, Top

1шт.

See Fig 90.124.03 For Service Parts

1шт.

3

84426027

SUSPENSION

Complete Air Suspension

1шт.

See Fig 90.124.07 For Service Parts

1шт.

4

87347934

LATCH

Slide, Kit

1шт.

5

84482042

KIT

Seat Boot

1шт.

6

302016A1

PACKAGE,SERVICE

Slide Puck Kit

4шт.

7

84482043

KIT

Boot Button Kit

1шт.

Выбрано товаров: 9
