Запчасти Case IH TITAN 3530 (90.118.10) - LADDER EXTENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

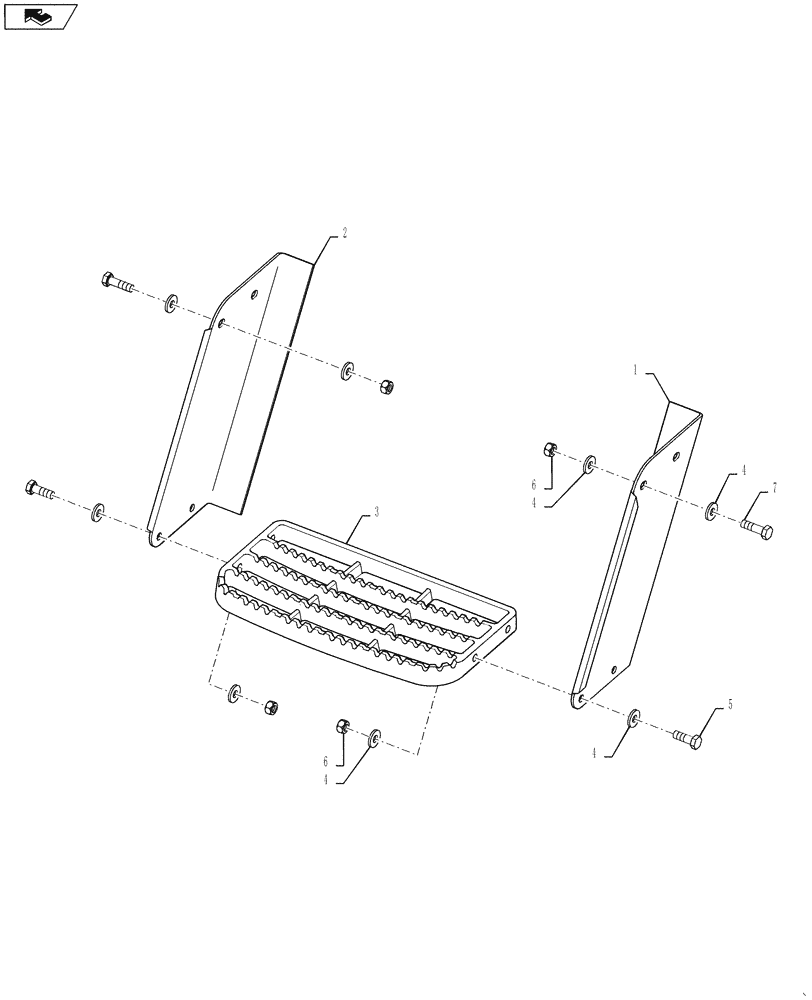

Схема запчастей Case IH TITAN 3530 - (90.118.10) - LADDER EXTENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
5
4
6
4
6
3
4
home
7
1
4

Артикул

Название

Примечание

Количество

1

84427242

SUPPORT

Step Extension, Outer

1шт.

2

84427243

SUPPORT

Step Extension, Inner

1шт.

3

257375A1

STEP

Cast Aluminum

1шт.

4

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

16шт.

5

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

6

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

7

86980402

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

4шт.

Выбрано товаров: 7
