Запчасти Case IH TITAN 3530 (90.118.07) - FUEL TANK / WALKWAY MOUNTING, RIGHT SIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

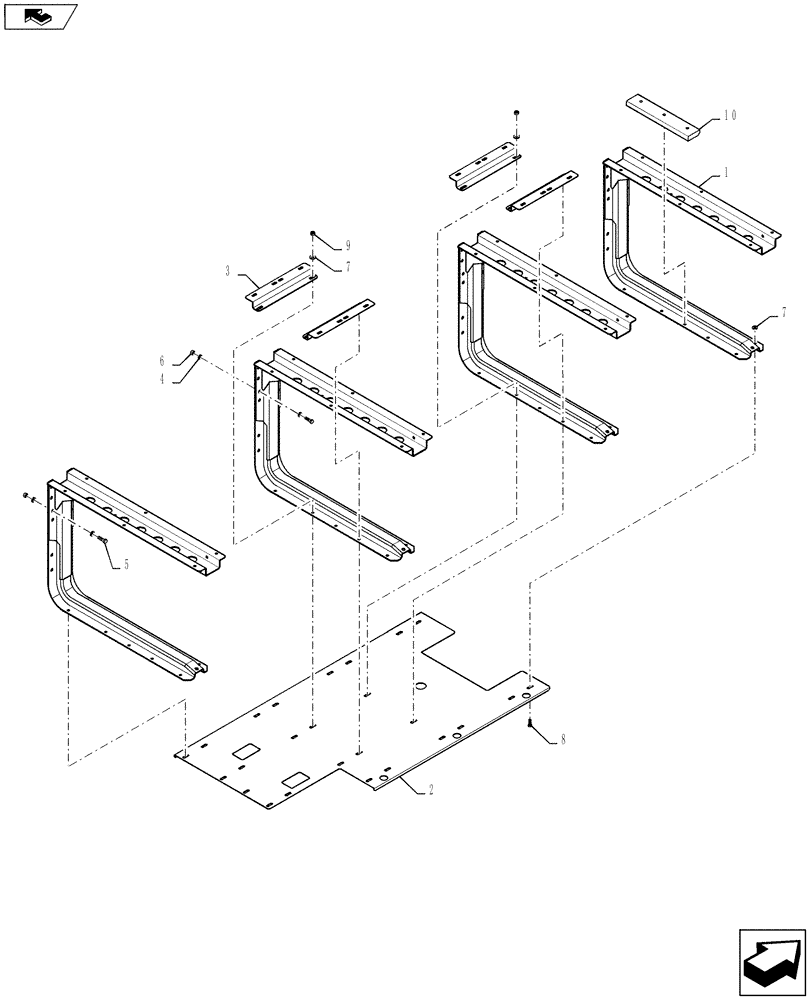

Схема запчастей Case IH TITAN 3530 - (90.118.07) - FUEL TANK / WALKWAY MOUNTING, RIGHT SIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
2
5
10
4
1
3
home
9
7
7
6

Артикул

Название

Примечание

Количество

1

84361544

MOUNT

Fuel Tank

4шт.

2

84367346

PLATE

Skid, Fuel Tank

1шт.

3

84367352

SUPPORT

Lower DEF Tank

4шт.

4

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

48шт.

5

86980423

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

24шт.

6

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

24шт.

7

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

30шт.

8

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

22шт.

9

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

DOR

8шт.

10

84374149

SPACER

Fuel Tank

1шт.

Выбрано товаров: 10
