Запчасти Case IH TITAN 3530 (90.118.06) - WALKWAY GROUP, RIGHT SIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

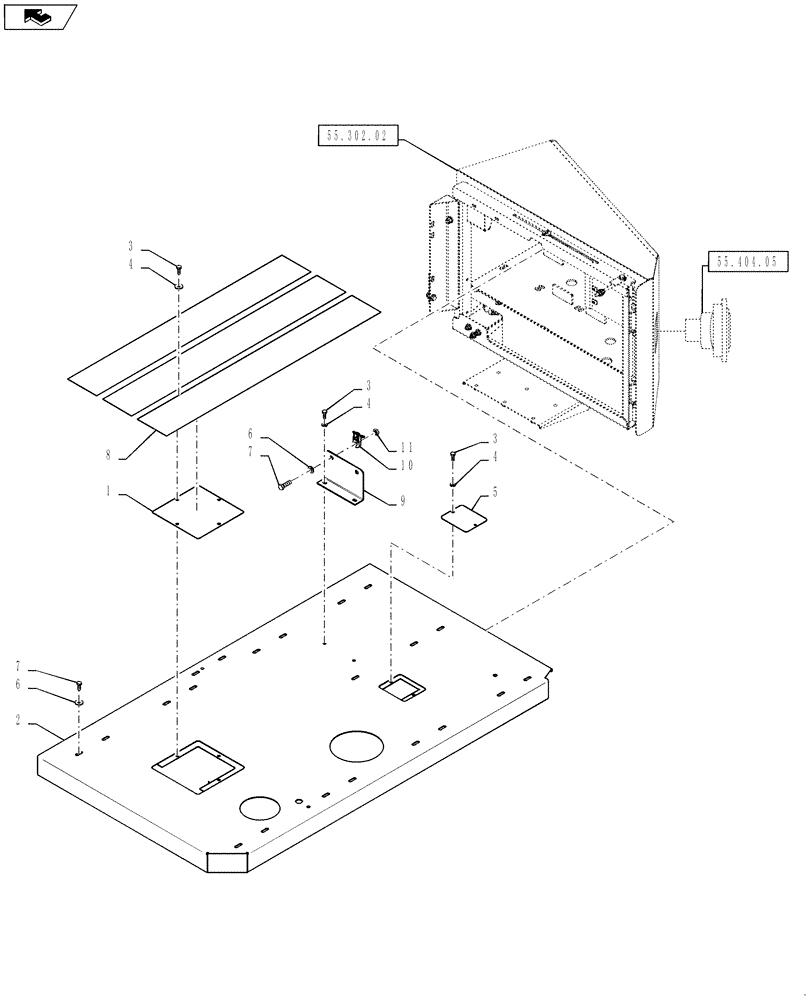

Схема запчастей Case IH TITAN 3530 - (90.118.06) - WALKWAY GROUP, RIGHT SIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
9
6
2
3
55.302.02
55.404.05
4
8
11
home
7
7
1
10
3
3
4
5
6

Артикул

Название

Примечание

Количество

1

87266048

COVER

Boom Support

1шт.

2

84367434

PLATE

Fuel Tank Top

1шт.

3

87266009

BOLT

M6 - 1 x 16, SS

7шт.

4

BN50138

WASHER,1/4", SS

7шт.

5

84367794

COVER

Fuel Sensor

1шт.

6

BN50146

WASHER,3/8", Stainless

15шт.

7

BN322388

SCREW,Hex, M10 x 1.5 x 30mm, SST

M10-1.5 X 30, HH, SS

15шт.

8

84367824

STRIP

Safety Walk

3шт.

9

84594145

BRACKET

Inlet Temperature Sensor

1шт.

10

84407295

BASE

Tie, M8 Stud

2шт.

11

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

Выбрано товаров: 11
