Запчасти Case IH TITAN 3530 (90.118.03) - WALKWAY, LEFT SIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

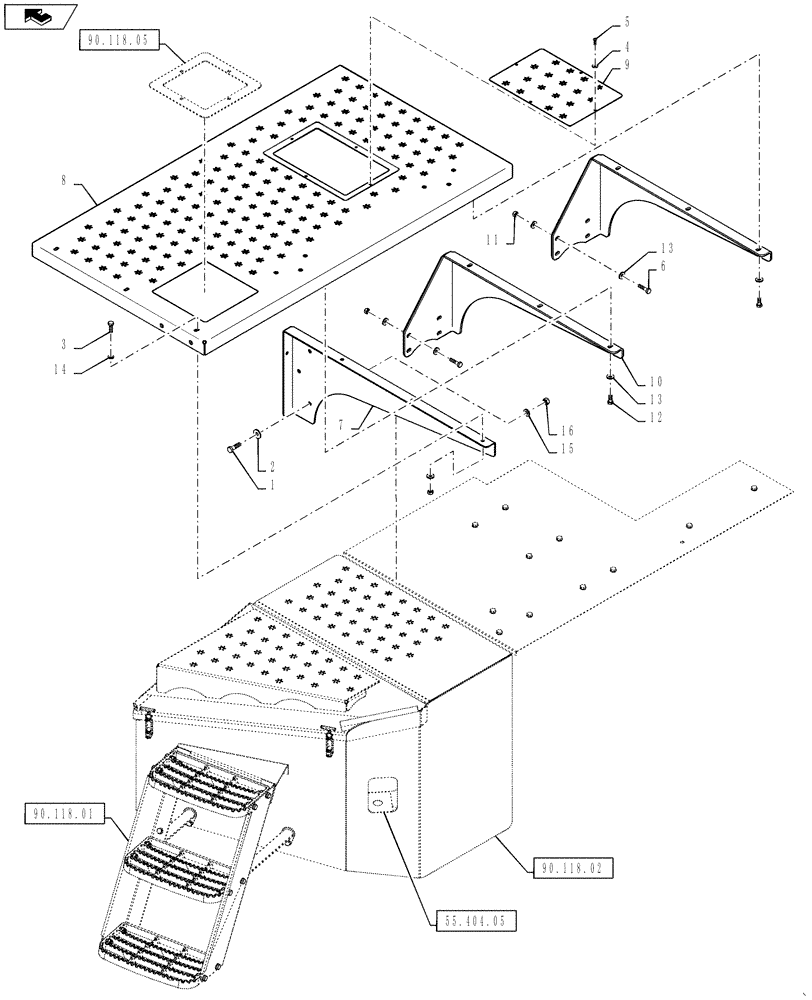

Схема запчастей Case IH TITAN 3530 - (90.118.03) - WALKWAY, LEFT SIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS
12
13
11
3
7
6
15
16
1
8
90.118.01
90.118.05
90.118.02
55.404.05
home
14
9
4
5
10
13
2

Артикул

Название

Примечание

Количество

1

86980423

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

3шт.

2

BN50595

WASHER,1/2", Stainless

3шт.

3

BN322388

SCREW,Hex, M10 x 1.5 x 30mm, SST

M10-1.5 X 30, HH, SS

3шт.

4

BN50138

WASHER,1/4", SS

4шт.

5

BN315199

SCREW,M6 x 20mm, SST

M6 1 X 20, BSH, SS

4шт.

6

86980403

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

8шт.

7

87266043

SUPPORT

Front Walkway

1шт.

8

87266044

EXTENSION

Walkway, Left Side

1шт.

9

87267032

COVER

Oil Filter

1шт.

10

87266685

SUPPORT

Mount, Walkway, Cab

2шт.

11

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

11шт.

12

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

6шт.

13

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

25шт.

14

BN50146

WASHER,3/8", Stainless

3шт.

15

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

3шт.

16

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

3шт.

Выбрано товаров: 16
