Запчасти Case IH TITAN 3530 (90.116.03) - FRONT MUD FLAP & RADIATOR ACCESS GROUP (90) - PLATFORM, CAB, BODYWORK AND DECALS

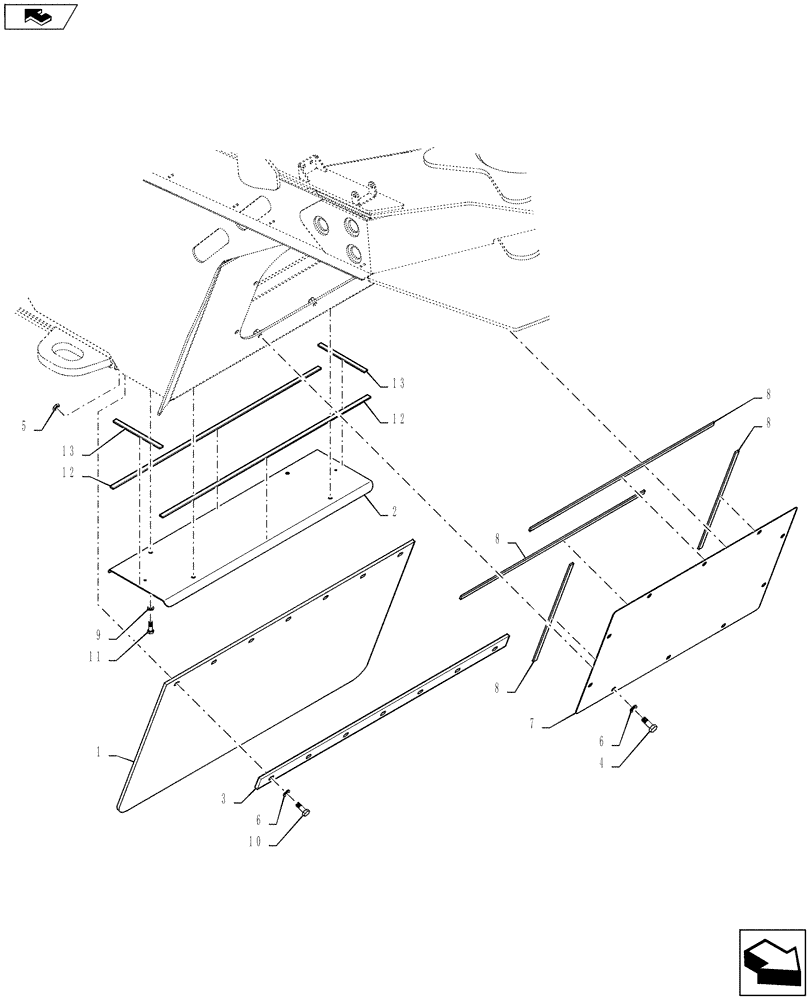

Схема запчастей Case IH TITAN 3530 - (90.116.03) - FRONT MUD FLAP & RADIATOR ACCESS GROUP (90) - PLATFORM, CAB, BODYWORK AND DECALS
9
6
13
7
13
12
home
3
8
8
12
8
5
4
8
2
1
10
6
11

Артикул

Название

Примечание

Количество

1

87668024

MUDFLAP

CASE IH, 24X40

1шт.

2

87267003

COVER

Access, Lower

1шт.

3

BN320352

STIFFENER

Mudflap, Poly

1шт.

4

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

10шт.

5

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

7шт.

6

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

17шт.

7

87272651

COVER

Radiator Access

1шт.

8

BN326049

FOAM

Bulk, 3/16" x 1/2", Cut To Length

1шт.

9

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

4шт.

10

86980403

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

7шт.

11

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

12

87267005

SEAL

Lower, Front & Back

2шт.

13

87267004

SEAL

Lower, Side

2шт.

Выбрано товаров: 13
