Запчасти Case IH TITAN 3530 (90.116.02) - REAR AXLE MUDFLAPS (90) - PLATFORM, CAB, BODYWORK AND DECALS

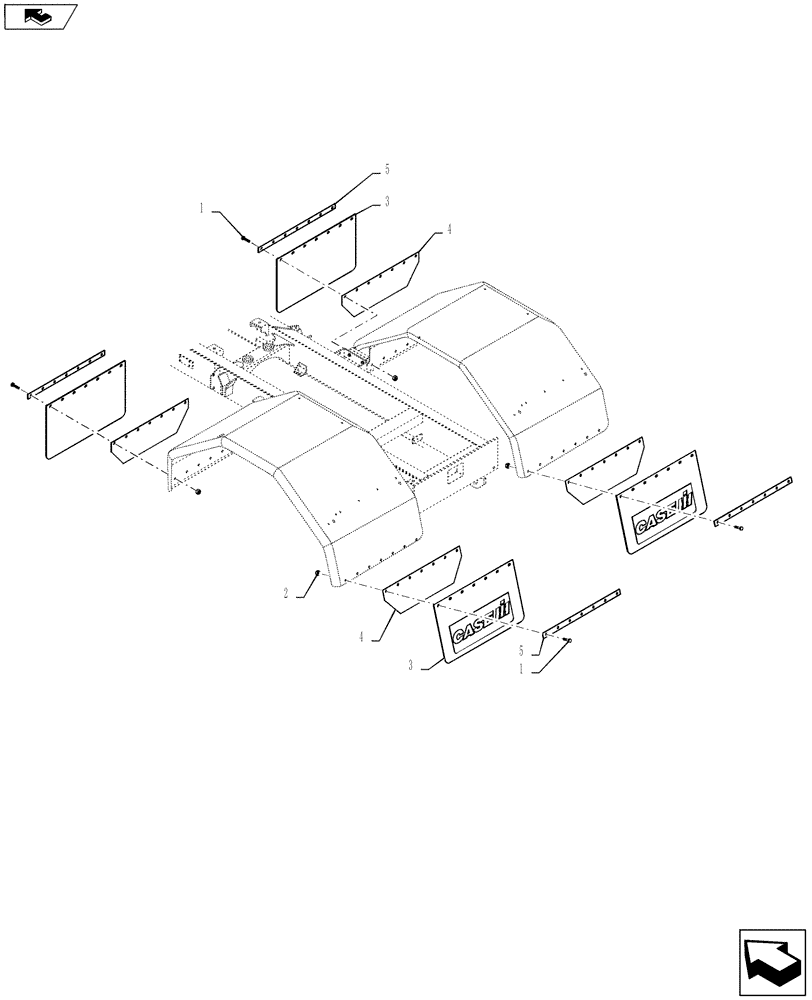

Схема запчастей Case IH TITAN 3530 - (90.116.02) - REAR AXLE MUDFLAPS (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
4
home
2
3
4
1
3
5
1

Артикул

Название

Примечание

Количество

1

86980403

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

28шт.

2

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

28шт.

3

87668024

MUDFLAP

CASE IH, 24X40

4шт.

4

BN320351

SUPPORT

Mudflap, Poly

4шт.

5

BN320352

STIFFENER

Mudflap, Poly

4шт.

Выбрано товаров: 5
