Запчасти Case IH TITAN 3530 (90.116.01) - REAR FENDERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

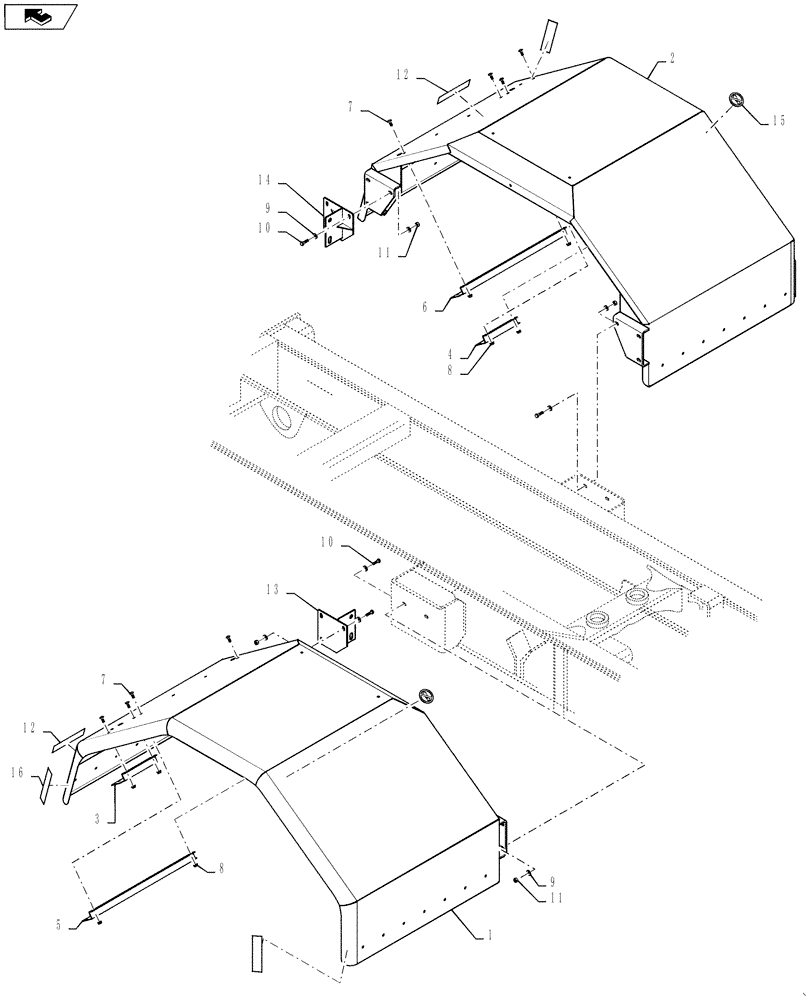

Схема запчастей Case IH TITAN 3530 - (90.116.01) - REAR FENDERS (90) - PLATFORM, CAB, BODYWORK AND DECALS
15
12
7
3
9
2
1
home
11
8
4
11
10
16
7
12
13
14
9
5
8
10
6

Артикул

Название

Примечание

Количество

1

87266856

FENDER

RH Side, 73"

1шт.

2

87266857

FENDER

LH Side, 73"

1шт.

3

87267039

COVER

Wire Harness, Short

1шт.

4

87267037

COVER

Wire Harness, Short

1шт.

5

87267040

COVER

Wire Harness, Long

1шт.

6

87267038

COVER

Wire Harness, Long

1шт.

7

BN50205

BOLT

1/4-20X.625,TH,SS,PHILIPS

24шт.

8

BN50052

LOCK NUT,1/4"-20, USR, SS

12шт.

9

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 X 28 X 4 HDN DOR

24шт.

10

86980423

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

12шт.

11

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

12шт.

12

311863A1

REFLECTOR

Retroreflective Red, 9 x 2

2шт.

13

BN311484

MOUNTING PLATE

Rear Fender, RH Side

1шт.

14

BN311485

MOUNTING PLATE

Rear Fender, LH Side

1шт.

15

84432904

DECAL

No Step

2шт.

16

311864A1

REFLECTOR

Retroreflective Amber

4шт.

Выбрано товаров: 16
