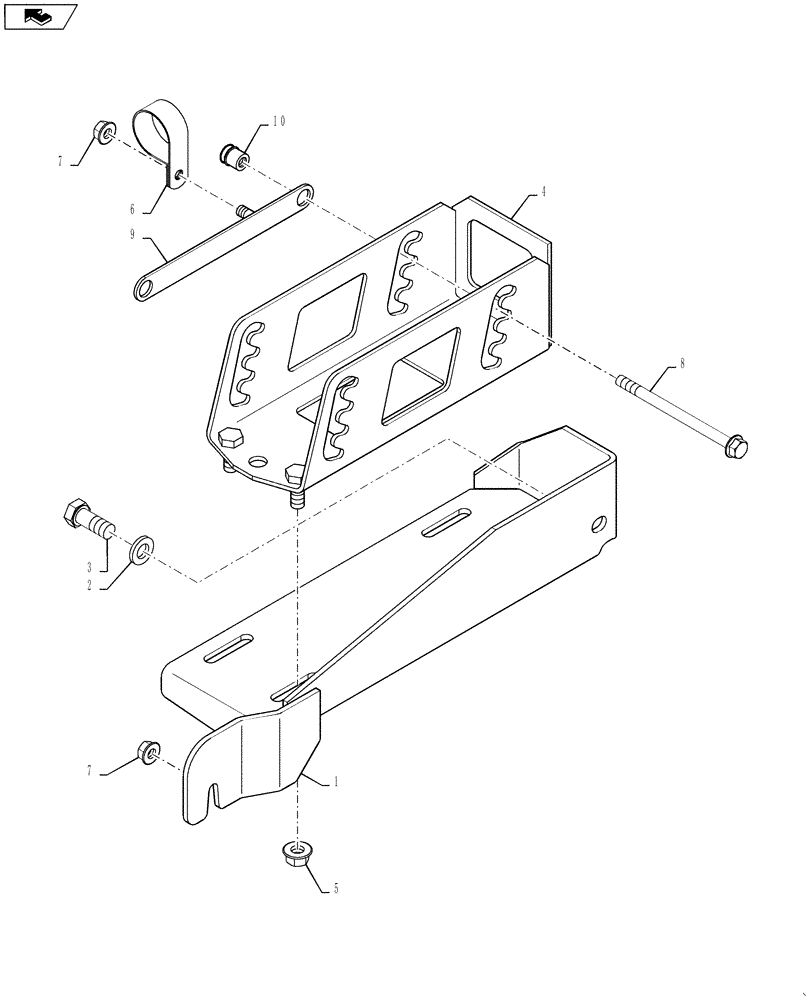

Запчасти Case IH TITAN 3530 (90.115.03) - RH CONSOLE MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

BN317670

MOUNTING PLATE

Control Console

1шт.

2

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

1шт.

3

86980420

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

1шт.

4

BN321613

SLIDE

Lower, Adjustable

1шт.

5

87344219

FLANGE NUT,M10 - 1.5, 8, DOR, Flange

4шт.

6

515-23365

CLAMP,1 7/16", Insul, 3/8" Bolt

1шт.

7

86981461

FLANGE NUT,M8 x 1.25, Cl 8

1шт.

8

87344205

BOLT,Flg, M8 x 1.25 x 120mm, Cl 10.9

2шт.

9

BN325246

RETAINER

Slide

1шт.

10

408566A1

INSERT,M8

Threaded

2шт.
