Запчасти Case IH TITAN 3530 (90.108.02) - DECAL, LABEL/WARNING (90) - PLATFORM, CAB, BODYWORK AND DECALS

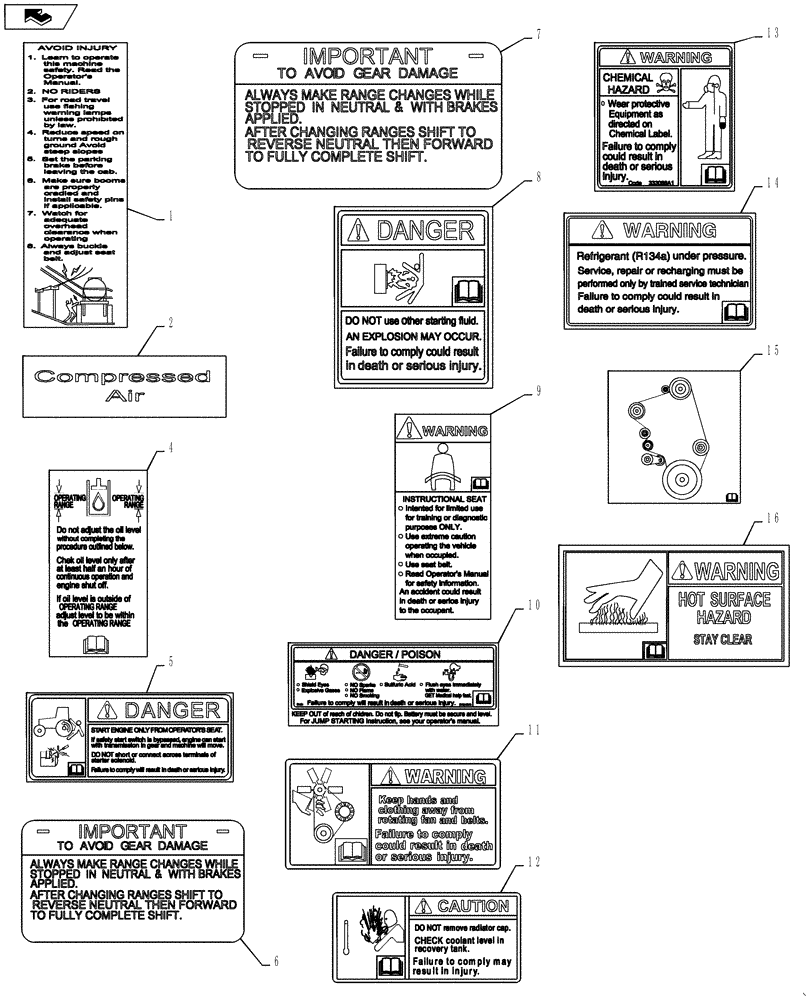

Схема запчастей Case IH TITAN 3530 - (90.108.02) - DECAL, LABEL/WARNING (90) - PLATFORM, CAB, BODYWORK AND DECALS
16
5
2
8
12
4
7
6
1
14
home
13
9
15
11
10

Артикул

Название

Примечание

Количество

1

84536492

WARNING DECAL

Warning

1шт.

2

BN322679

DECAL

Compressed Air

1шт.

3

333089A1

DECAL

Torque Wheel Nuts, (Not Shown)

1шт.

4

47727126

DECAL

Hydraulic Oil Level

1шт.

5

87033529

DECAL

Danger, Starter

1шт.

6

87269194

DECAL

Shift Instruction

1шт.

7

87266632

DECAL

Shift Instruction

1шт.

8

629086

DANGER DECAL

Ether

2шт.

9

410704A1

WARNING DECAL

Instructional Seat

1шт.

10

87054970

DECAL

Battery

1шт.

11

86501511

WARNING DECAL

Fan

2шт.

12

87013363

DECAL

Radiator Cap

1шт.

13

333088A1

DECAL

Protective Clothing

1шт.

14

87054969

WARNING DECAL

Refrigerant

1шт.

15

84278706

DECAL

Engine Belt Routing

1шт.

16

418242A3

WARNING DECAL,168mm x 88mm H

Hot Surface Muffler

1шт.

Выбрано товаров: 16
