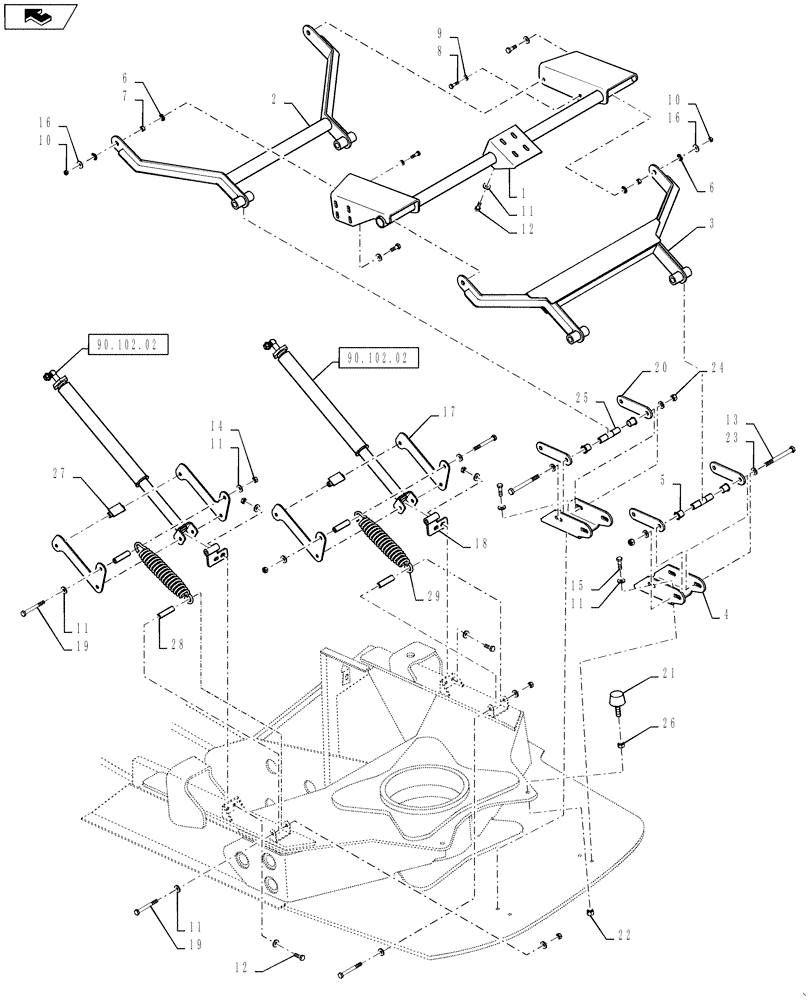

Запчасти Case IH TITAN 3530 (90.102.01) - HOOD PIVOT LINKAGE GROUP (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

342235A1

MOUNTING PLATE

Hood Link

1шт.

2

343836A1

LINKAGE

Rear Hood

1шт.

3

343848A1

LINKAGE

Front Hood

1шт.

4

343839A1

BRACKET, SUPPORTING

Lower Pivot

2шт.

5

343838A1

BUSHING

Flange, 18MM

8шт.

6

87265447

FLANGED BEARING,14 mm ID x 22 mm OD x 3, 1 mm

Flange, 14MM

8шт.

7

342288A1

SPACER

Bushing

4шт.

8

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

4шт.

9

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

4шт.

10

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

4шт.

11

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

40шт.

12

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

16шт.

13

86980432

BOLT,Hex, M12 x 120mm, Cl 8.8

M12-1.75 X 120, 8.8, DOR

4шт.

14

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

12шт.

15

86980402

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

4шт.

16

87528983

WASHER,8.4mm ID x 25mm OD x 2mm Thk

M8 x 25 x 2, CST, DOR

4шт.

17

87265873

BRACKET, SUPPORTING

Mount, Spring

4шт.

18

87267026

MOUNTING PLATE

Lower, Lift Cylinder

2шт.

19

86980409

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

8шт.

20

342652A1

PLATE

Hood Mount

4шт.

21

342650A1

BUMPER

Rubber

2шт.

22

87343981

NUT,1/2"-13, GR B, DOR

2шт.

23

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

8шт.

24

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

4шт.

25

343841A1

TUBE,13 mm ID, 19.1 mm OD, 88 mm Length

Hood Pivot

4шт.

26

87343666

NUT

1/2-13 GR 5 DOR

2шт.

27

87269152

MOUNTING PLATE

Spring Pull

2шт.

28

87269162

TUBE

Spacer

4шт.

29

339549A1

COIL SPRING

Extension

2шт.
